Lab 8: Stunts

The purpose of this lab is to combine everything built in previous labs, motor control, ToF sensing, and the Kalman Filter, to execute a fast stunt. I chose Task A: Flip. The robot start at least 4 meters from the wall, drive forward at full speed, and upon reaching 1 foot from the wall, perform a flip and drive back past the starting line.

Lab 8 builds directly on the Lab 7 KF+PID codebase. The main additions are removing sensor 1 (see debugging section), adding the runStunt() function, and adding PERFORM_STUNT to the command enum.

Single Sensor Setup

After persistent sensor 1 initialization failures (see debugging section), I removed sensor 1 entirely. Sensor 2 is now the only ToF sensor, initialized directly at its default I2C address with no XSHUT pin manipulation:

SFEVL53L1X sensor2;
int distance2 = 0;

// In setup():
if (sensor2.begin() != 0) {
    Serial.println("Sensor 2 failed!");
    while(1);
}
Serial.println("Sensor 2 OK!");
sensor2.setDistanceModeShort();

Stunt State Machine

The stunt runs as a two-phase state machine. Full-speed forward until the KF estimate drops below STUNT_TRIGGER_DIST, then full-speed reverse for STUNT_REVERSE_MS milliseconds. The PID controller is completely bypassed, with the car runs at constant 255 PWM in both directions. A raw ToF hard safety independently triggers reverse if the sensor reads below 400mm, catching cases where the KF hasn't initialized yet:

#define STUNT_TRIGGER_DIST 800
#define STUNT_REVERSE_MS   800

void runStunt() {
    kf_predict(255.0f);

    if (sensor2.checkForDataReady()) {
        distance2 = sensor2.getDistance();
        sensor2.clearInterrupt();
        sensor2.stopRanging();
        sensor2.startRanging();
        if (!kf_initialized) {
            mu(0, 0)          = -(float)distance2;
            mu(1, 0)          = 0;
            last_predict_time = millis();
            kf_initialized    = true;
            return;
        }
        kf_update((float)distance2);
    }

    if (distance2 > 0 && distance2 < 400) {
        backward(255);
        stunt_phase_reversing = true;
        stunt_reverse_timer   = millis();
    }

    if (!kf_initialized || distance2 == 0) return;

    float kf_dist = kf_distance();
    if (kf_dist < 0 || kf_dist > 5000) kf_dist = (float)distance2;

    if (!stunt_phase_reversing) {
        if (kf_dist > STUNT_TRIGGER_DIST) {
            forward(255);
        } else {
            stunt_phase_reversing = true;
            stunt_reverse_timer   = millis();
            backward(255);
        }
    } else {
        if (millis() - stunt_reverse_timer < STUNT_REVERSE_MS) {
            backward(255);
        } else {
            stop();
            stunt_running = false;
            sensor2.stopRanging();
        }
    }
}

Updated Command Enum

enum CommandTypes {
    START_LINEAR_PID,
    STOP_LINEAR_PID,
    SEND_LINEAR_PID_DATA,
    SET_LINEAR_PID_GAIN,
    PERFORM_STUNT,
    PERFORM_DRIFT,
};

Guard Against Uninitialized Distance

The main bug in earlier testing was that the car immediately drive backward on start because distance2 = 0 before the first ToF reading arrived, making the PID error hugely negative. The fix is a guard that holds the car still until both the KF is initialized and a valid ToF reading exists:

if (!kf_initialized || distance2 == 0) return;

ToF Sensor Initialization Failures

Throughout this lab I continued to struggle with the bent Qwiic MultiPort lead issue first identified in Lab 6. The root cause is that one of the four I2C leads on my SparkFun Qwiic MultiPort was bent while plugging in a connector, leaving marginal contact. I bent it back with tweezers, but the repair was never reliable. After every recompile and upload, I had to physically unplug and replug the ToF sensor cables to get initialization to succeed.

I have mentiooned this issue every recent report, but in Lab 8, the situation got worse: sensor 2 started failing to initialize consistently even after replugging, while sensor 1 initialized fine. Since sensor 1 is never used for distance measurement (all my code uses sensor 2), I resolved this by unplugging sensor 1's Qwiic cable entirely and removing all sensor 1 code. Sensor 2 then initializes at its default I2C address 0x29 with no conflicts and no XSHUT toggling required. The Serial Monitor now reliably prints "Sensor 2 OK!" on every boot.

Car Driving Backward on Start

On first testing, the car immediately drove backward when the stunt was triggered. The issue was that distance2 starts at 0 before any ToF reading arrives, so kf_dist = 0, making linear_error = 0 - 304 = -304 (negative), which triggers backward(). The fix was adding the if (!kf_initialized || distance2 == 0) return; guard described above.

Car Not Flipping - Attempt 1 (No Weight)

In the first attempt, the car drove forward and reversed at the trigger distance, but did not flip — it just skidded backward. The reverse duration of 800ms was not enough to generate sufficient angular momentum. I increased STUNT_REVERSE_MS but the car still did not flip.

Car Stopping After Adding Weight — Attempt 2

Following the lab instructions suggesting adding weight to the front to lower the center of mass and make flipping easier, I taped weight to the front of the car. However, the car then stopped after moving forward and never reached the wall. The added weight was too heavy and the motors could not overcome the increased rolling resistance at the deadband threshold. I removed the weight.

Successful Stunt - Attempt 3

After removing the weight, I tuned STUNT_TRIGGER_DIST and STUNT_REVERSE_MS and got the flip to work. The key insight was that the trigger distance needed to be set so the car is still moving at maximum speed when it reverses — triggering too early meant the car had already started to coast. With STUNT_TRIGGER_DIST = 800 and STUNT_REVERSE_MS = 800, the flip executes consistently.

Attempt 1: No Weight Added — Unsuccessful

Attempt 2: Weight Added to Front — Unsuccessful

Attempt 3: No Weight — Successful Flip

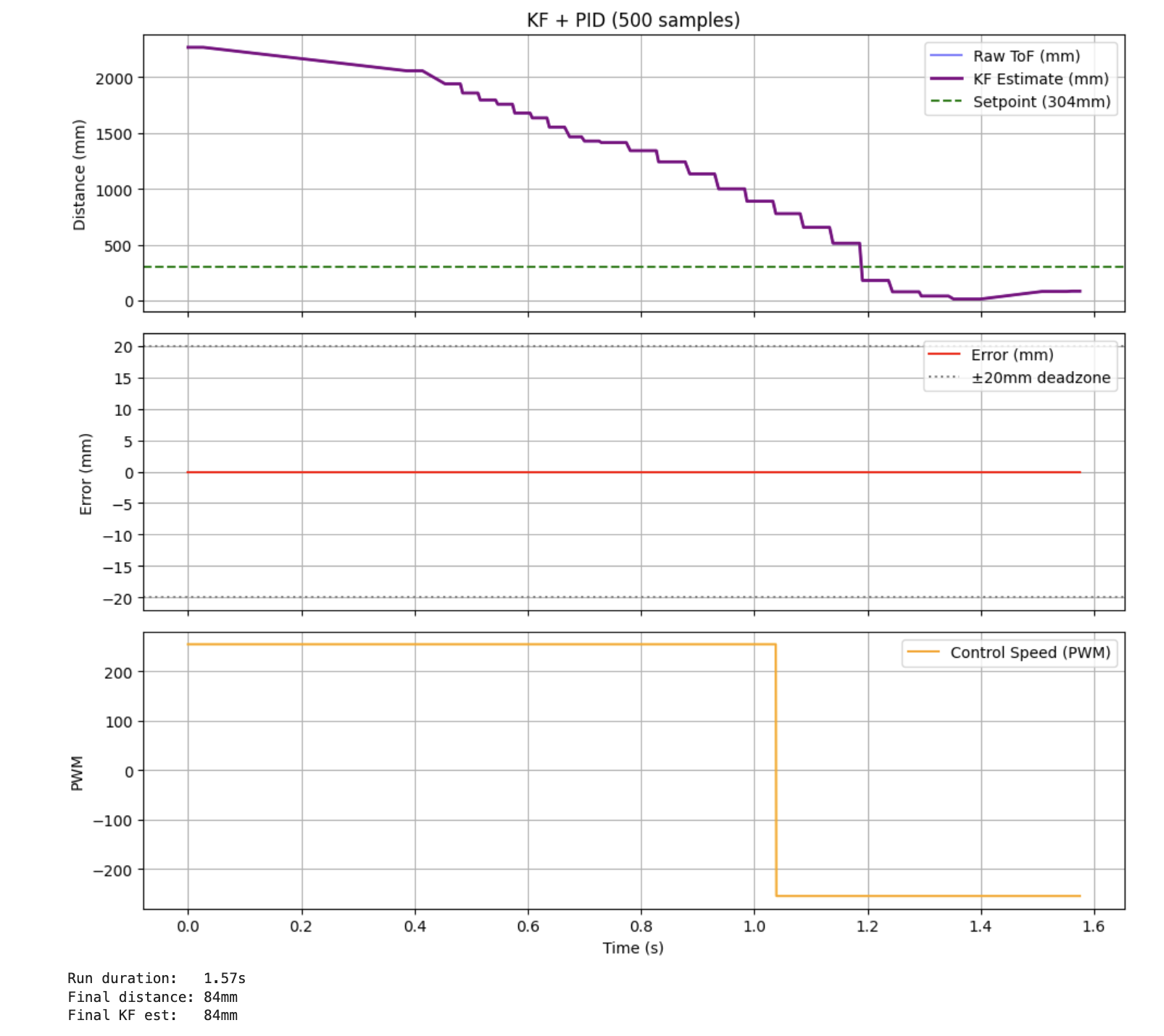

Sensor Data During Successful Run
