Lab 11: Localization using Bayes Filter (Real)

Objective

The objective of this lab is to perform localization with the Bayes filter on the actual robot in a real physical environment. Because the motion of these robots is extremely noisy in practice, the prediction step provides little value — so only the update step based on full 360° ToF scans is used. A fully-functional and optimized Bayes filter implementation that works on the virtual robot is provided, and I make targeted changes so that it can interface with my real robot.

Ground Truth

Unlike in the simulation environment, there is no automated method to get the real robot's ground truth pose. I instead identify the robot's pose by measuring its distance from the origin (0, 0) of the map in tile units along the x and y directions. For this lab, I place the robot at the four marked positions: (−3, −2), (0, 3), (5, −3), and (5, 3).

Observation Loop

The robot performs a 360° in-place rotation, taking ToF readings at 20° increments starting from its current heading (+0°, +20°, +40°, …, +340° CCW), for a total of 18 readings. Reducing the number of observations reduces the accuracy of the localized pose, so I tune the firmware to reliably capture all 18.

Pre-lab Setup

I set up the base code by copying lab11_sim.ipynb and lab11_real.ipynb into the notebooks directory, localization_extras.py into the FastRobots-sim-release root directory, and the necessary Bluetooth Python modules (base_ble.py, ble.py, connection.yaml, cmd_types.py) from previous labs into the notebooks directory.

  • localization_extras.py — provides the fully-functional localization module that works on the virtual robot.
  • lab11_sim.ipynb — demonstrates the Bayes filter implementation on the virtual robot.
  • lab11_real.ipynb — provides skeleton code to integrate the real robot with the localization code.

Task 1 — Localization in Simulation

Before testing on the real robot, I ran lab11_sim.ipynb to verify that the provided localization module works correctly in simulation. The simulator runs the full Bayes filter loop — prediction step from odometry, followed by an update step from the 18-reading observation scan — at each of 15 trajectory steps.

Video 1. Bayes filter localization running in the simulator.

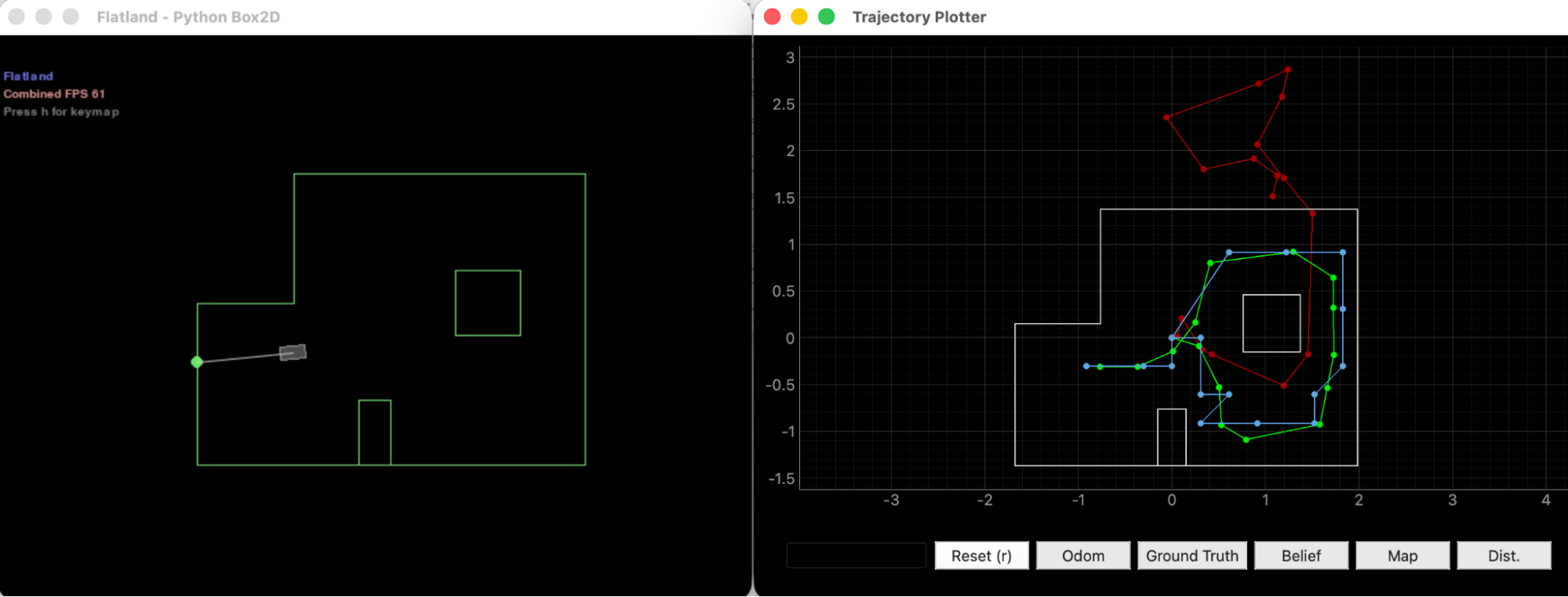

Figure 1 — Final plot from the simulation run
Figure 1. Final plot from the simulation run, showing odometry (red), ground truth (green), and belief (blue) tracks. The red odometry path drifts significantly outside the map, while the blue belief stays inside the map and closely follows the green ground truth — demonstrating that the Bayes filter successfully corrects for accumulated odometry error using the sensor model.

Prediction and Update Stats (Step 0)

The Jupyter notebook prints per-step prediction and update stats. At step 0, the prediction step runs in 0.031 s and the update step in 0.001 s. The prior belief is centered roughly half a cell off from ground truth, with probability 0.117. After the update step, the belief snaps to the correct cell at probability 1.0.

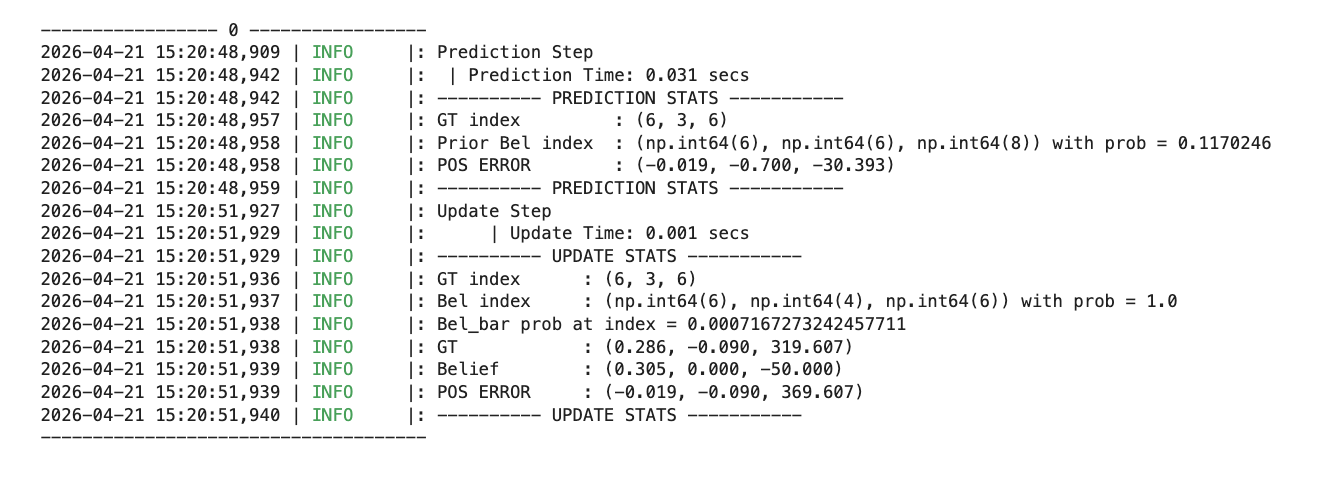

Figure 2 — Prediction and update stats from step 0
Figure 2. Example prediction and update stats from the simulator (step 0). GT index (6, 3, 6); prior belief index (6, 6, 8) with prob = 0.117; updated belief index (6, 4, 6) with prob = 1.0.

Task 2 — Integrating the Real Robot

For the real robot, I reused the same Arduino firmware from Lab 9 (mapping), since the on-board behavior is identical: rotate in place using orientation PID, settle at each setpoint, log (timestamp, yaw, distance), and dump the buffer over BLE on request. The work in Lab 11 happens almost entirely on the Python side.

The RealRobot class

The localization module calls RealRobot.perform_observation_loop() to collect the 18 readings. I implemented this method to send the Lab 9 mapping commands over BLE, drive the robot through 18 setpoints (0°, 20°, …, 340°), then request the data buffer.

The BLE notification handler parses each T:<ms>|Y:<deg>|D:<mm> string from the Artemis into three buffers:

def _mapping_data_notif_handler(self, uuid, byte_array):
                """Parse 'T:<ms>|Y:<deg>|D:<mm>' strings from the Artemis."""
                try:
                    s = self.ble.bytearray_to_string(byte_array)
                    kv = dict(item.split(":") for item in s.split("|"))
                    self.T_arr.append(int(kv["T"]))
                    self.Yaw_arr.append(float(kv["Y"]))
                    self.Dist_arr.append(int(kv["D"]))
                except Exception as e:
                    print(f"[notif] error: {e}")

The observation loop itself orchestrates the rotation and returns the 18 readings as a column NumPy array of meters (the format the localization module expects):

async def perform_observation_loop(self, rot_vel=120):
                self.T_arr.clear()
                self.Yaw_arr.clear()
                self.Dist_arr.clear()
                SETTLE_S = 6.0

                self.ble.send_command(CMD_lab9.RESET_YAW, "")
                await asyncio.sleep(0.5)
                self.ble.send_command(CMD_lab9.START_MAPPING_360_ROTATION, "")
                await asyncio.sleep(SETTLE_S)

                for setpoint in range(20, 360, 20):
                    self.ble.send_command(CMD_lab9.SET_ORIENTATION_SETPOINT,
                                        f"{float(setpoint)}")
                    await asyncio.sleep(SETTLE_S)

                self.ble.send_command(CMD_lab9.STOP_MAPPING_360_ROTATION, "")
                await asyncio.sleep(1.0)
                self.ble.send_command(CMD_lab9.SEND_MAPPING_DATA, "")
                await asyncio.sleep(5.0)

                n = len(self.Dist_arr)
                if n < 18:
                    raise RuntimeError(f"Got only {n} readings, expected 18. "
                                    f"Increase SETTLE_S or check BLE.")

                ranges_m = np.array(self.Dist_arr[:18], dtype=float) / 1000.0
                bearings = np.array(self.Yaw_arr[:18], dtype=float)
                sensor_ranges   = ranges_m[np.newaxis].T
                sensor_bearings = bearings[np.newaxis].T
                return sensor_ranges, sensor_bearings
Note on async: The function is declared async and uses await asyncio.sleep() instead of time.sleep(). This is required because BLE notifications are delivered via the asyncio event loop — using a blocking sleep would queue notifications but prevent them from being processed during the 70+ seconds of the scan, causing zero readings to actually reach the handler. The async keyword propagates up: BaseLocalization.get_observation_data() also needs to be made async, and the notebook cell needs await loc.get_observation_data().

Task 3 — Localization at the Four Marked Poses

With the RealRobot class implemented, I ran the update step of the Bayes filter at each of the four marked poses. For each pose, I started from a uniform prior (no information about the robot's location), then performed the 360° scan and a single update step. I marked the ground truth (GT) on the plotter manually in a separate cell, converting from feet to meters:

# ground truth marker for current pose being tested
            # change gt_ft for each 4 marked poses, then re-run
            FT_TO_M = 0.3048
            # pose 1: (-3, -2)   pose 2: (0, 3)   pose 3: (5, -3)   pose 4: (5, 3)
            gt_ft = (-3, -2)

            gt_m = (gt_ft[0] * FT_TO_M, gt_ft[1] * FT_TO_M)
            cmdr.plot_gt(gt_m[0], gt_m[1])
            print(f"GT placed at {gt_ft} ft = ({gt_m[0]:.3f}, {gt_m[1]:.3f}) m")

Debugging journey at pose (−3, −2)

Getting the first scan to actually produce a localized pose took several iterations of debugging. Most of these issues were also reflected back into the Lab 9 update section, which was revised after I got Lab 11 working.

Issue 1: No odometry plotted, 0 readings received

On my first attempt, the plotter only showed the green ground truth marker and no blue belief dot. The error trace said the observation loop received 0 readings.

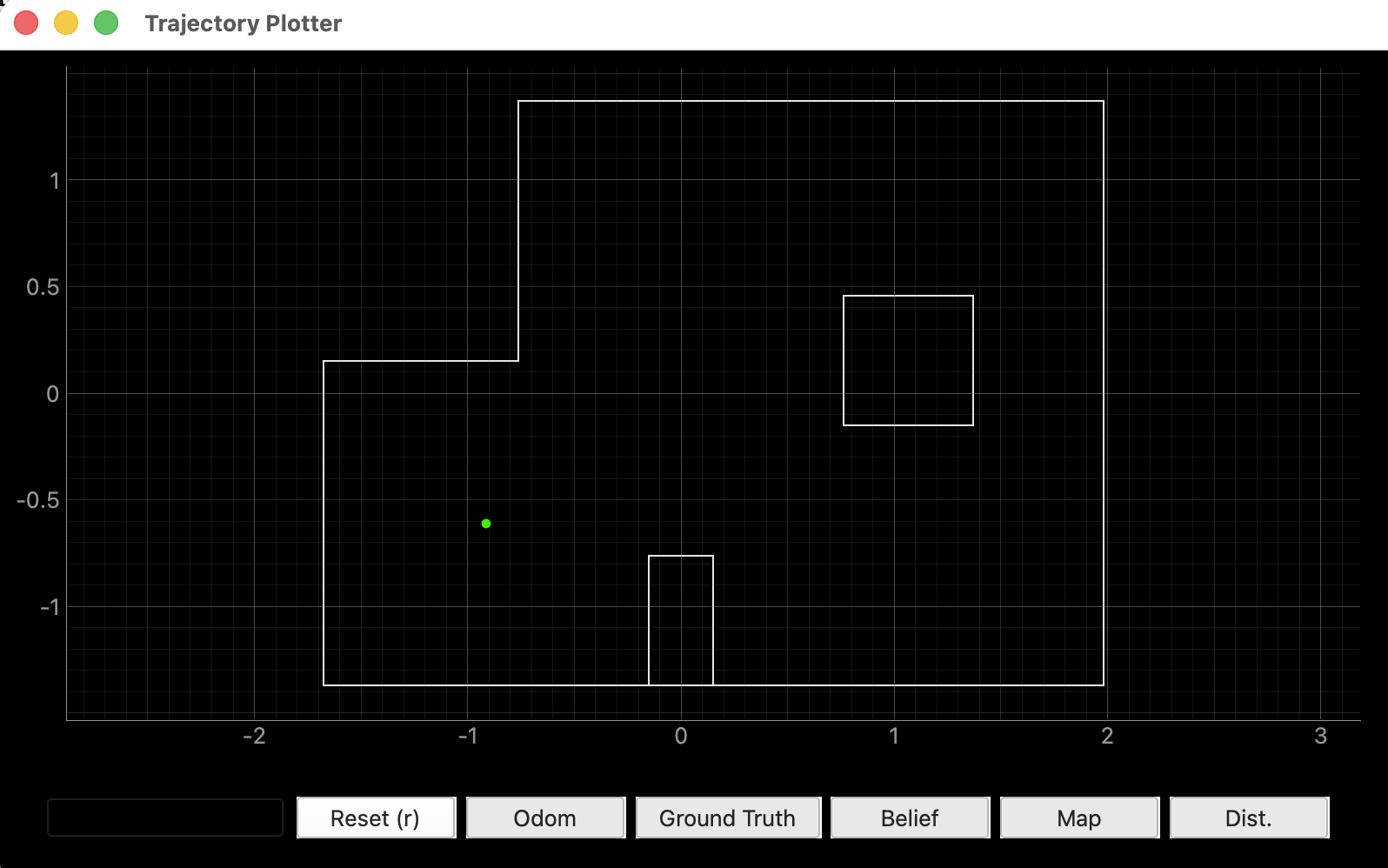

Figure 3 — Plotter showing only GT marker, no belief
Figure 3. Only the green GT marker is visible at pose (−3, −2) — no belief was plotted because the observation loop received zero readings.

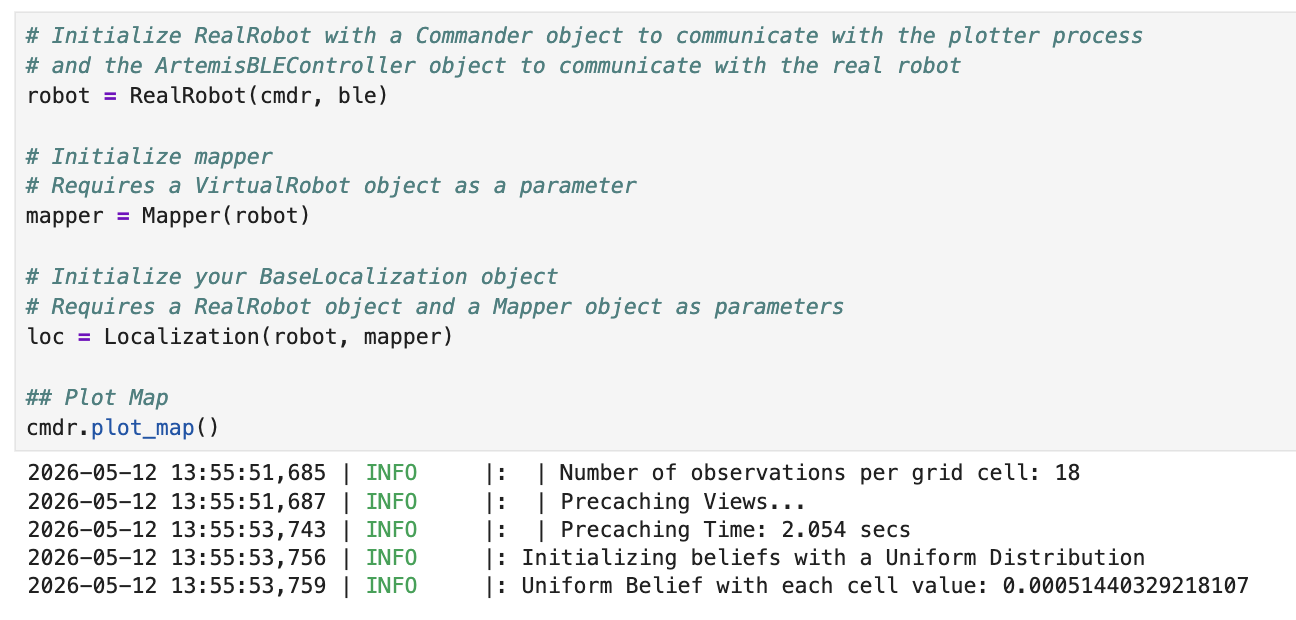

Figure 4 — Console output before the error
Figure 4. Pre-caching of obs_views completed successfully and the uniform belief was initialized, but no observation data arrived.

I added a print statement inside the notification handler to confirm whether BLE packets were even reaching Python:

def _mapping_data_notif_handler(self, uuid, byte_array):
                print(f"[notif] raw bytes: {byte_array[:40]}")   # debug print
                ...

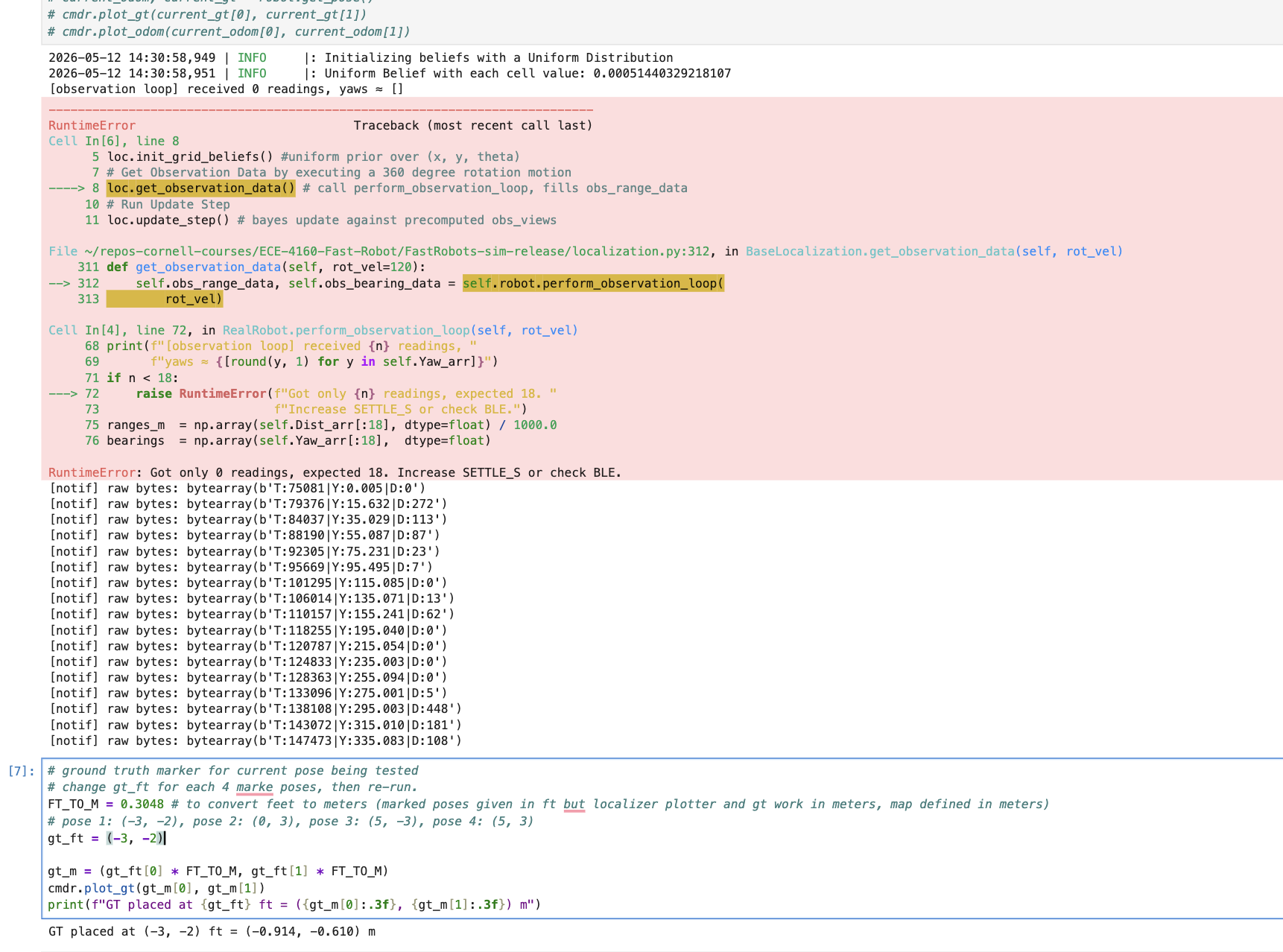

Figure 5 — Error says 0 readings, but [notif] prints arrive after the error
Figure 5. The error fires first ("Got only 0 readings"), then all 18 [notif] raw bytes prints arrive afterward. The notifications were queued during the scan but couldn't be processed until the asyncio loop got control back — which only happened after the function had already raised the error.

The fix was switching from synchronous time.sleep() calls to await asyncio.sleep(), and making perform_observation_loop() and BaseLocalization.get_observation_data() both async. With this change, the asyncio loop gets control back during each sleep and can deliver notifications as they arrive.

Issue 2: Only 13 of 18 readings received

After the asyncio fix, I started receiving notifications during the scan — but only 13 instead of the required 18. Looking at the yaws of the missed setpoints (155°, 175°, 195°, 255°, 275°), they occurred in consecutive bunches, suggesting the robot was rotating too quickly through certain sections without spending a single PID loop iteration inside the 5° deadzone at those setpoints.

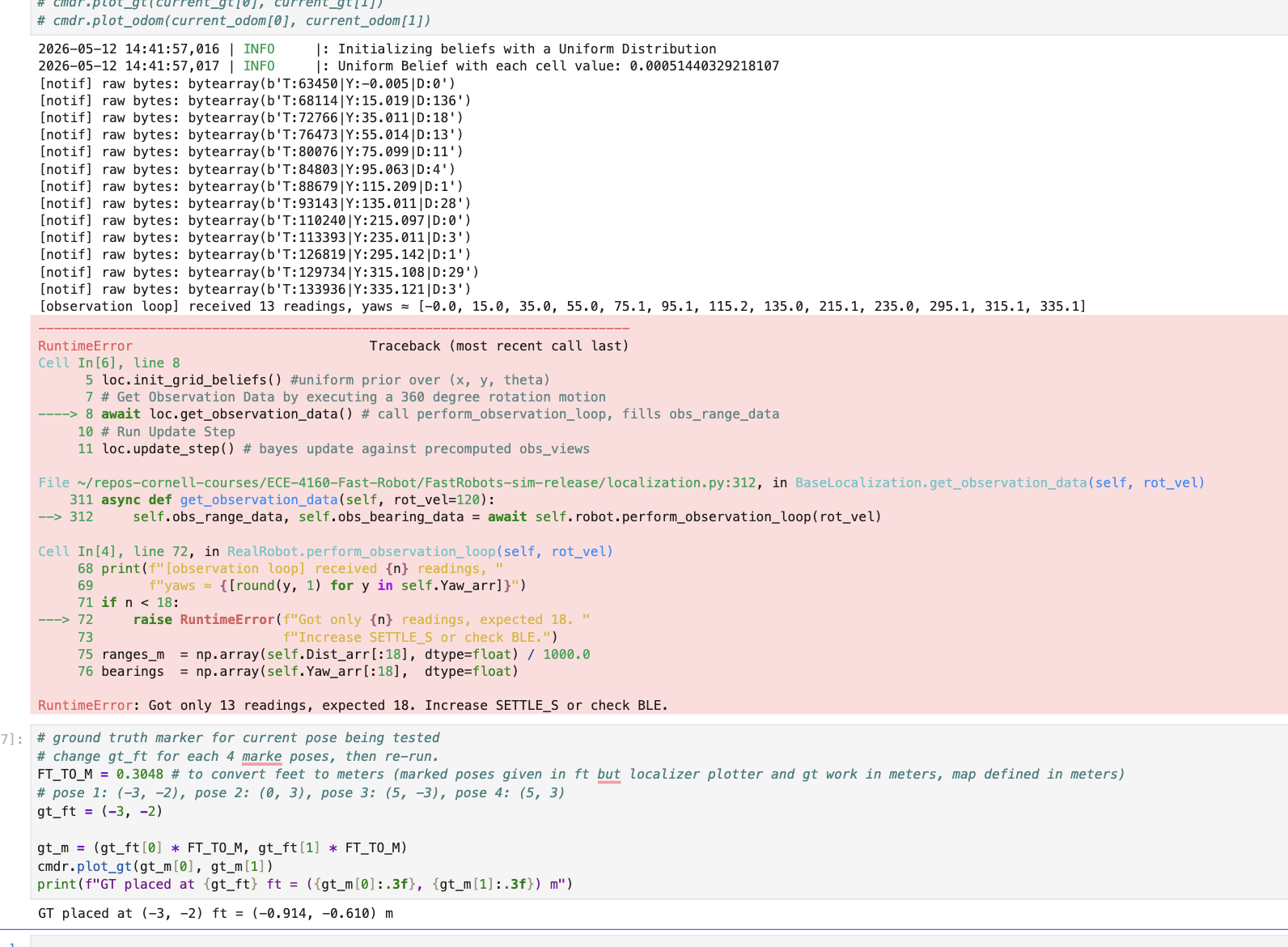

Figure 6 — Only 13 readings
Figure 6. 13 of 18 readings received. The pattern of missed setpoints suggested the robot was flying past them too fast for the firmware to log a reading.

Rather than reduce observations_count in world.yaml (which would lose localization accuracy), I applied the same firmware tweaks that helped in Lab 9: widening the yaw deadzone from 5° to 10° and increasing the per-setpoint settle time from 4 s to 6 s.

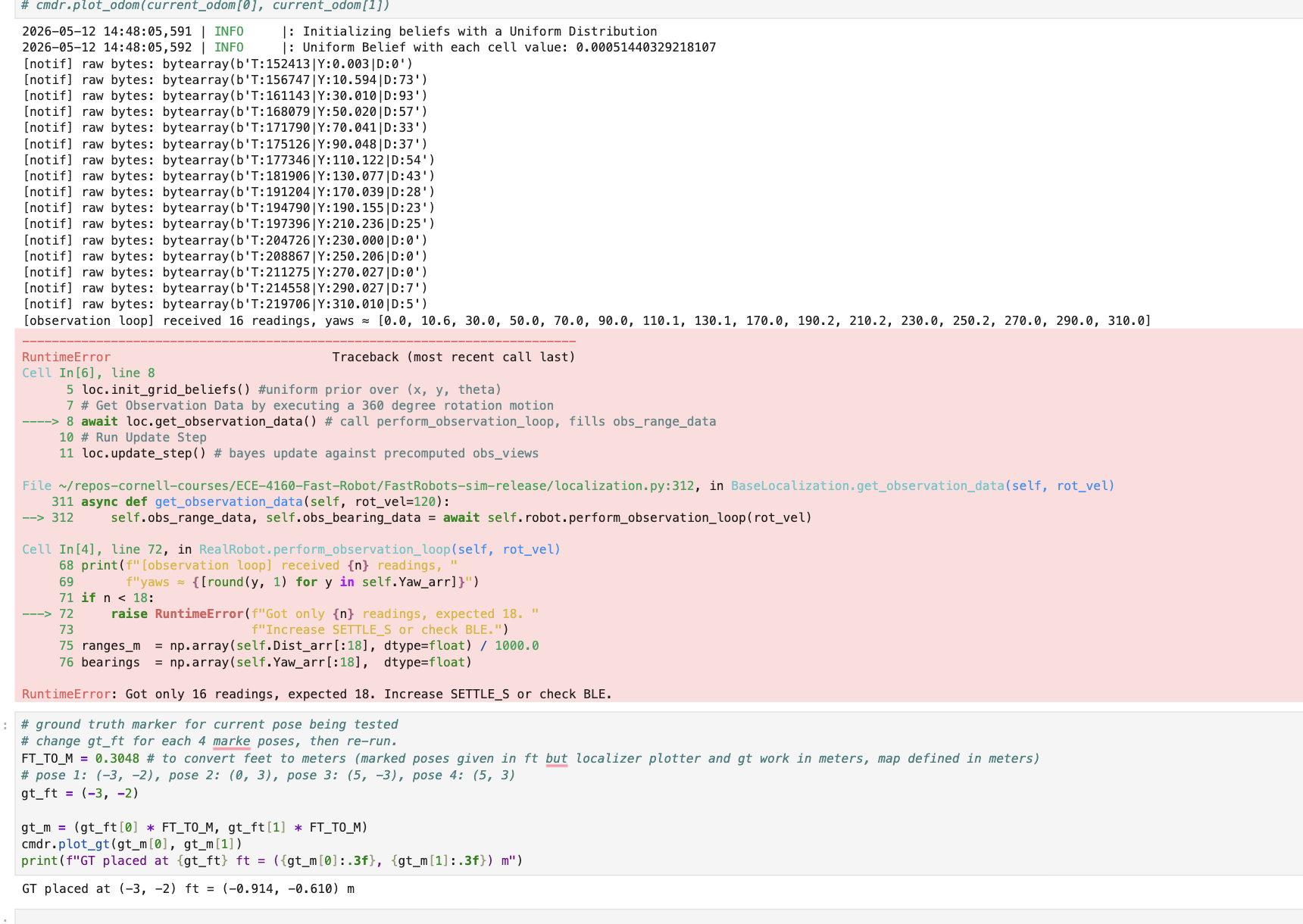

Figure 7 — 16 readings after widening the deadzone
Figure 7. After widening the yaw deadzone to 10°, I got 16 of 18 readings — still not enough.

After also increasing the settle time, I finally consistently got the full 18 readings.

Figure 8 — Testing the car on the lab table
Figure 8. Testing the car on the lab table (with my hand ready to catch it from falling off the edge).

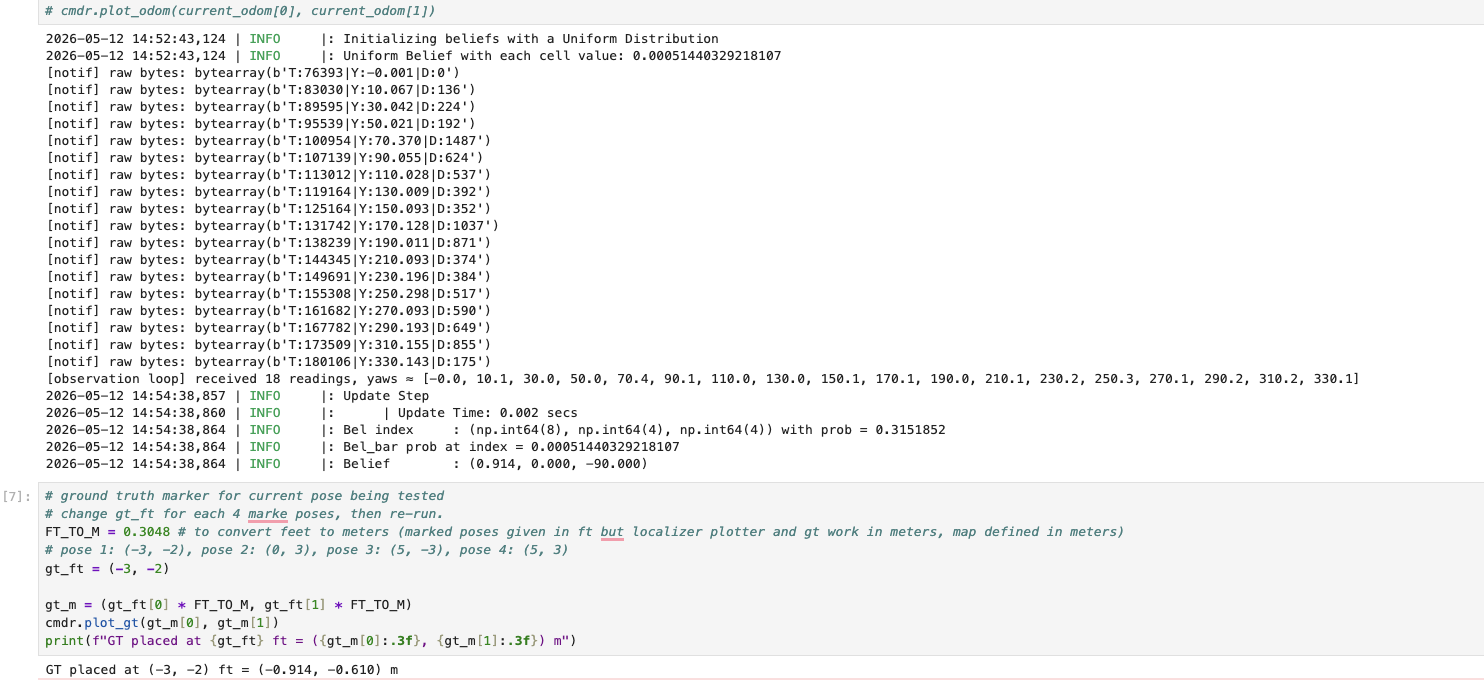

Figure 9 — All 18 readings received during testing
Figure 9. All 18 readings received during a benchtop test, with the update step running successfully (Update Time: 0.002 s). Belief output was (0.914, 0.000, −90°), which was clearly wrong for pose (−3, −2) — pointing to a deeper issue beyond just reading count.

Pose (−3, −2) — initial run reveals heading issue

Video 2. Robot performing the 360° localization scan at pose (−3, −2).

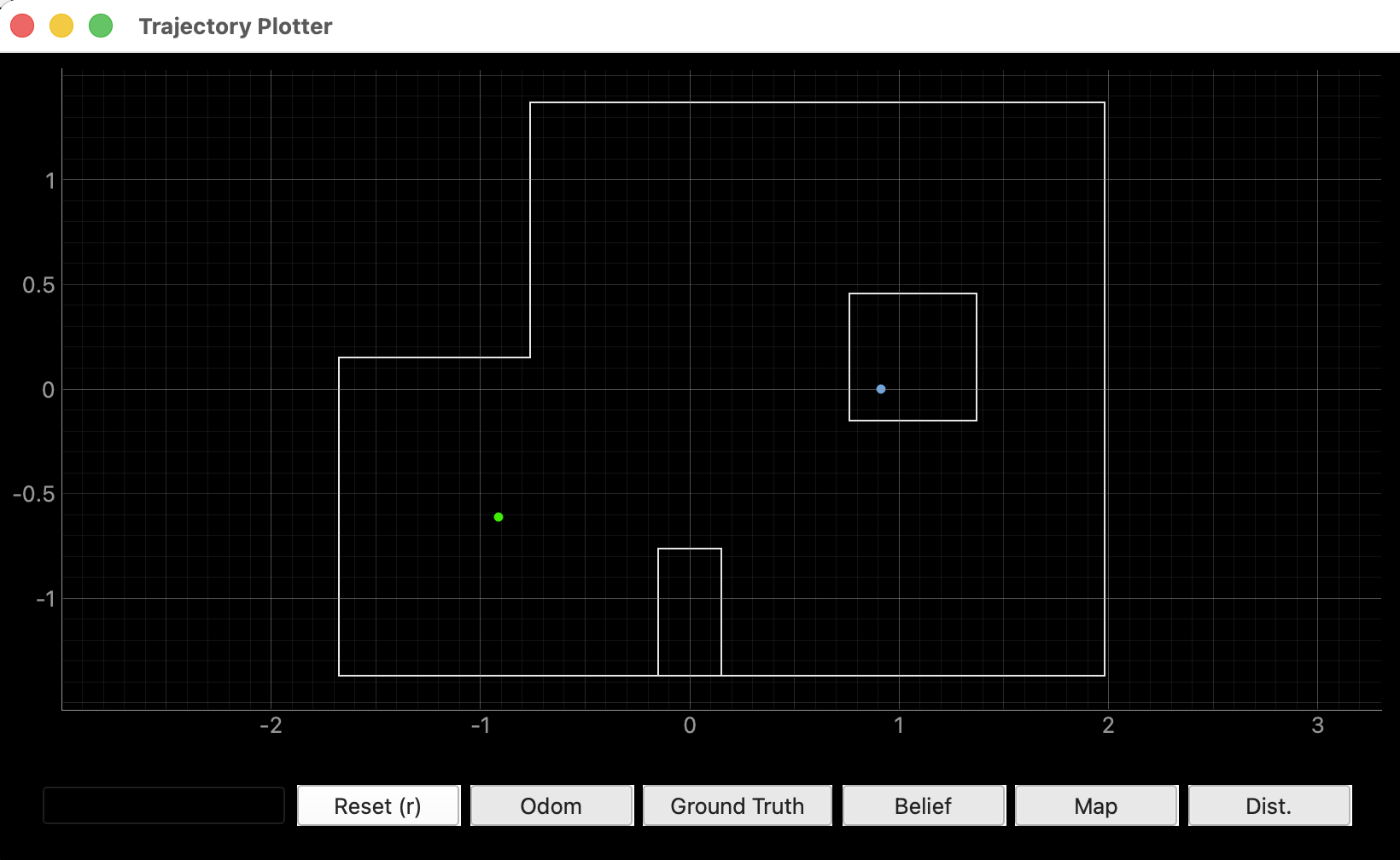

Figure 10 — Belief at pose (-3, -2) lands inside the upper-right inner obstacle
Figure 10. At pose (−3, −2), the green GT marker is in the bottom-left at (−0.914, −0.610) m, but the blue belief landed inside the upper-right inner obstacle near (0.9, 0.0) m — clearly the wrong cell.

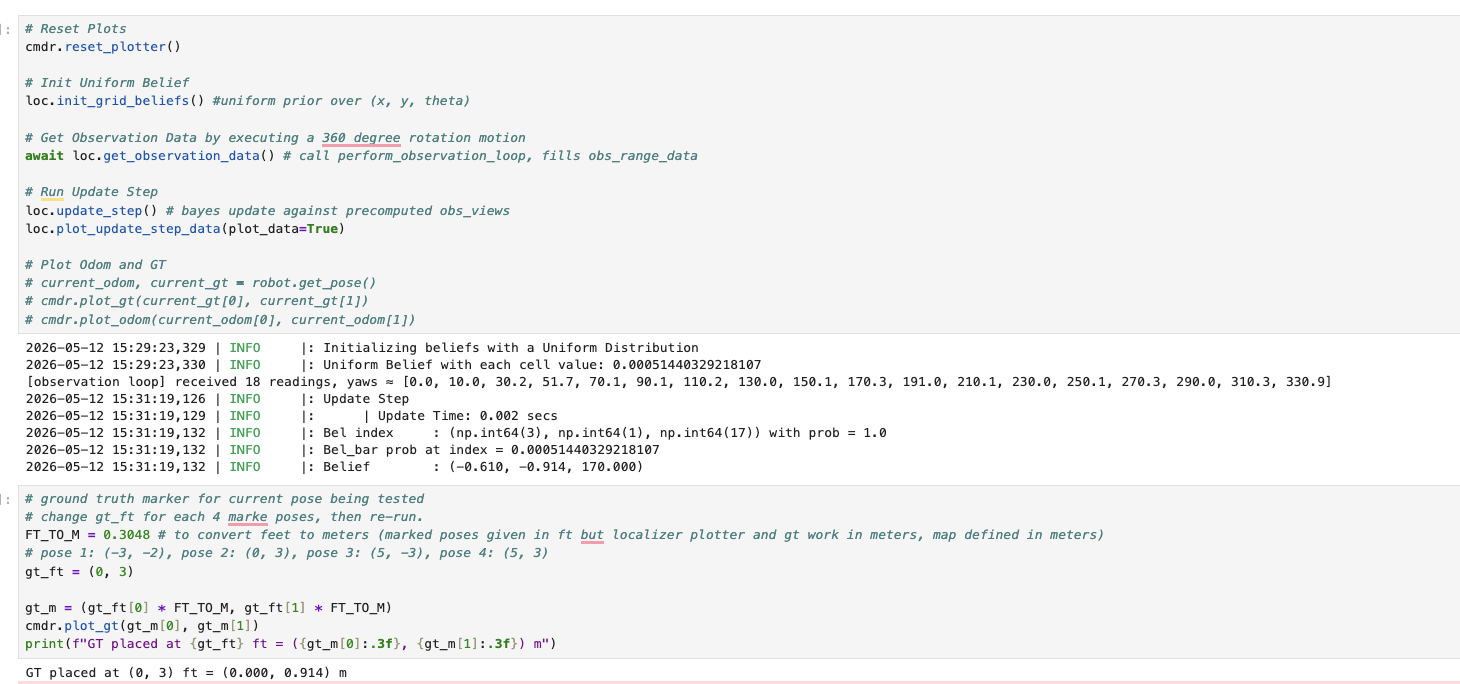

Figure 11 — Update step print at pose (-3, -2)
Figure 11. Update step logs from the same run: belief at (−0.610, −0.914, 170°) with probability 1.0. The coordinates are swapped from GT (−0.914, −0.610) and the heading is 170°. I placed the robot facing the +x direction (0°), so a reported heading of ~170° meant the sensor's measurement frame was rotated almost 180° from how I interpreted "forward".

Pose (0, 3) — flipped axes problem

Video 3. Robot performing the 360° localization scan at pose (0, 3).

When I ran the scan at pose (0, 3), the belief landed nowhere near the GT either. The update step printed a belief location in the completely wrong quadrant.

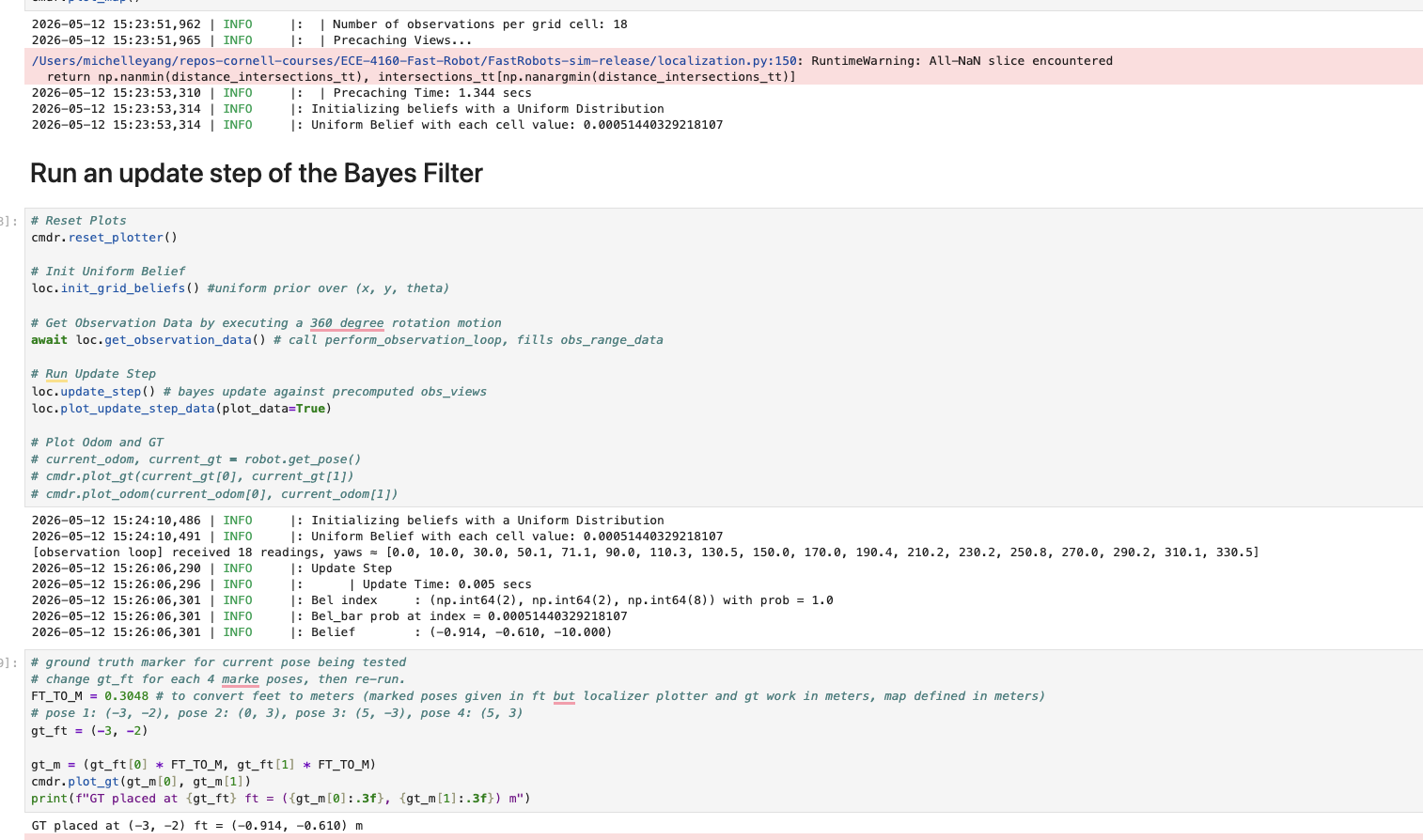

Figure 12 — Update step output for pose (0, 3) before fixing the ToF orientation
Figure 12. Update step logs from the (0, 3) attempt: belief at (−0.914, −0.610, −10°) — the position is in the bottom-left of the map instead of the top-center where the GT actually is. This is the same flipped/rotated pattern seen at pose (−3, −2), confirming a systemic issue rather than a coincidence.

I was always placing the robot facing east (+x direction), so why was the belief interpreting it as facing the wrong way? After thinking about it, I realized the issue: I had been mounting the ToF sensor with its long axis vertical, so the sensor's first reading (at gyro_yaw = 0) wasn't actually pointing along the robot's nose. I changed the orientation of the ToF sensor so that the horizontal is now its long axis and the two mounting holes are on the bottom — making the sensor face directly along the robot's heading direction.

This change worked.

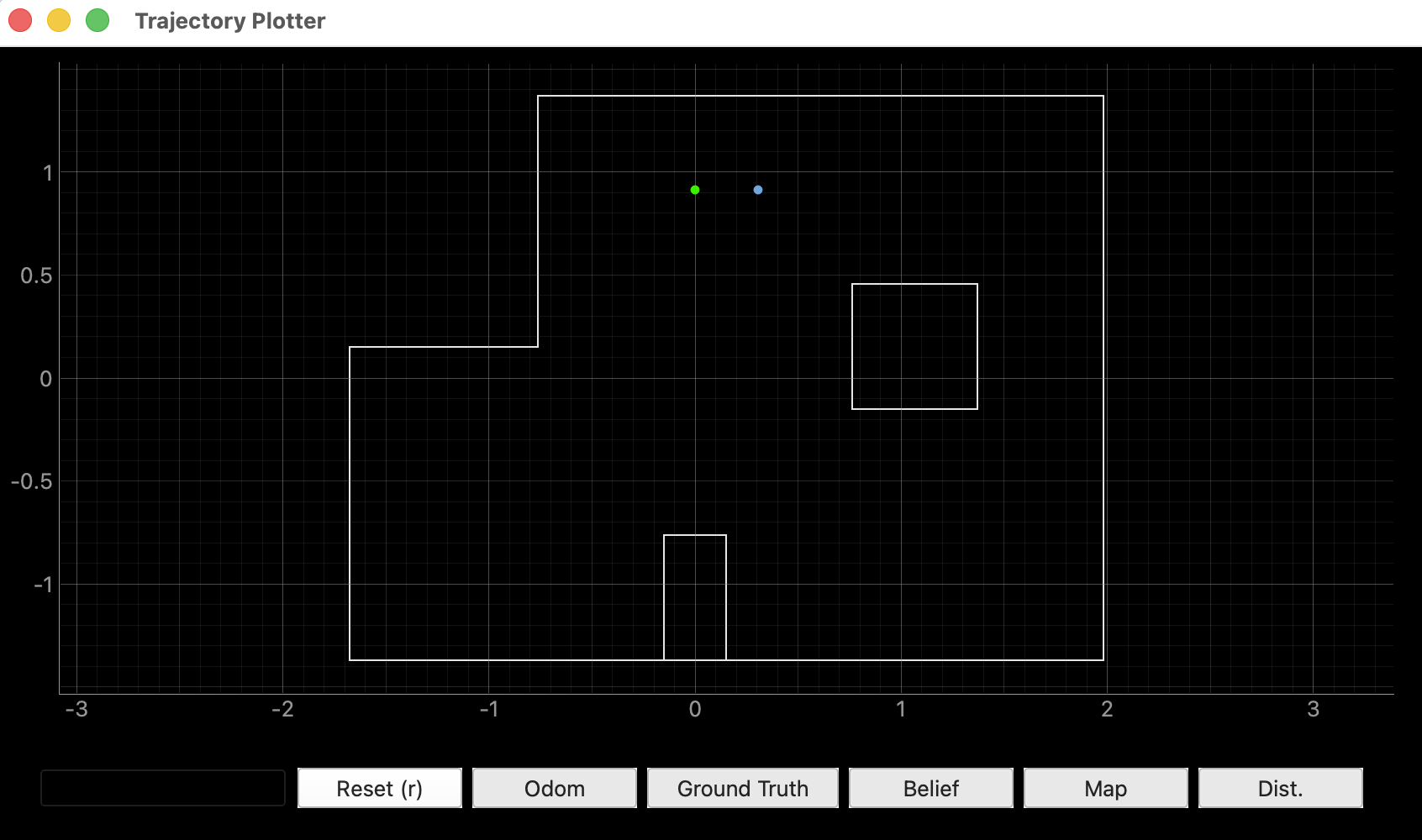

Figure 13 — Belief now near GT at pose (0, 3) after ToF reorientation
Figure 13. After re-mounting the ToF sensor with the correct orientation, the belief (blue) at pose (0, 3) is now very close to the GT (green), separated by less than one grid cell.

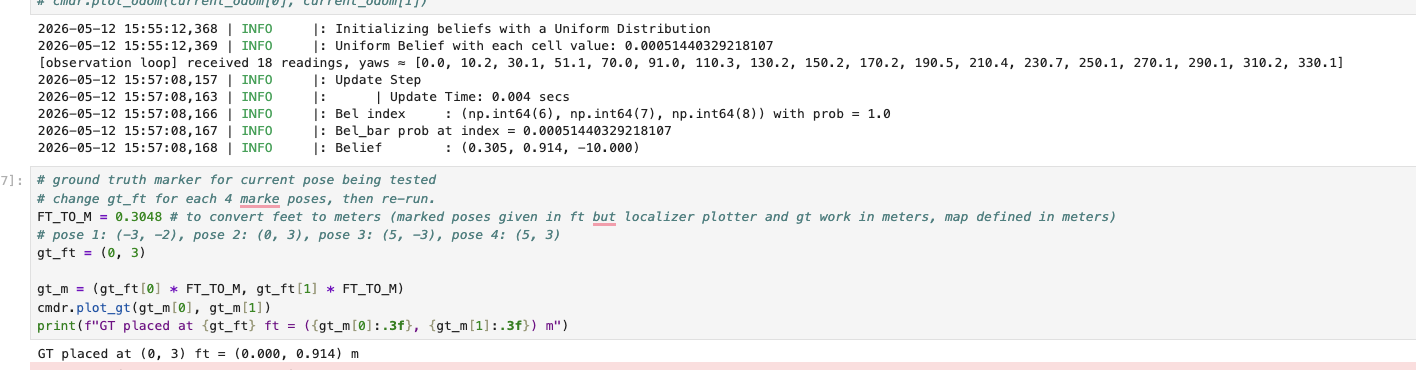

Figure 14 — Update step output at pose (0, 3) after fix
Figure 14. Update step logs after the ToF fix: belief at (0.305, 0.914, −10°) with probability 1.0. GT is (0.000, 0.914) — an XY error of just 0.305 m (one grid cell).

Pose (−3, −2) — redo after the ToF fix

With the ToF sensor reoriented, I returned to pose (−3, −2) and re-ran the scan. This time the belief landed exactly at the GT location.

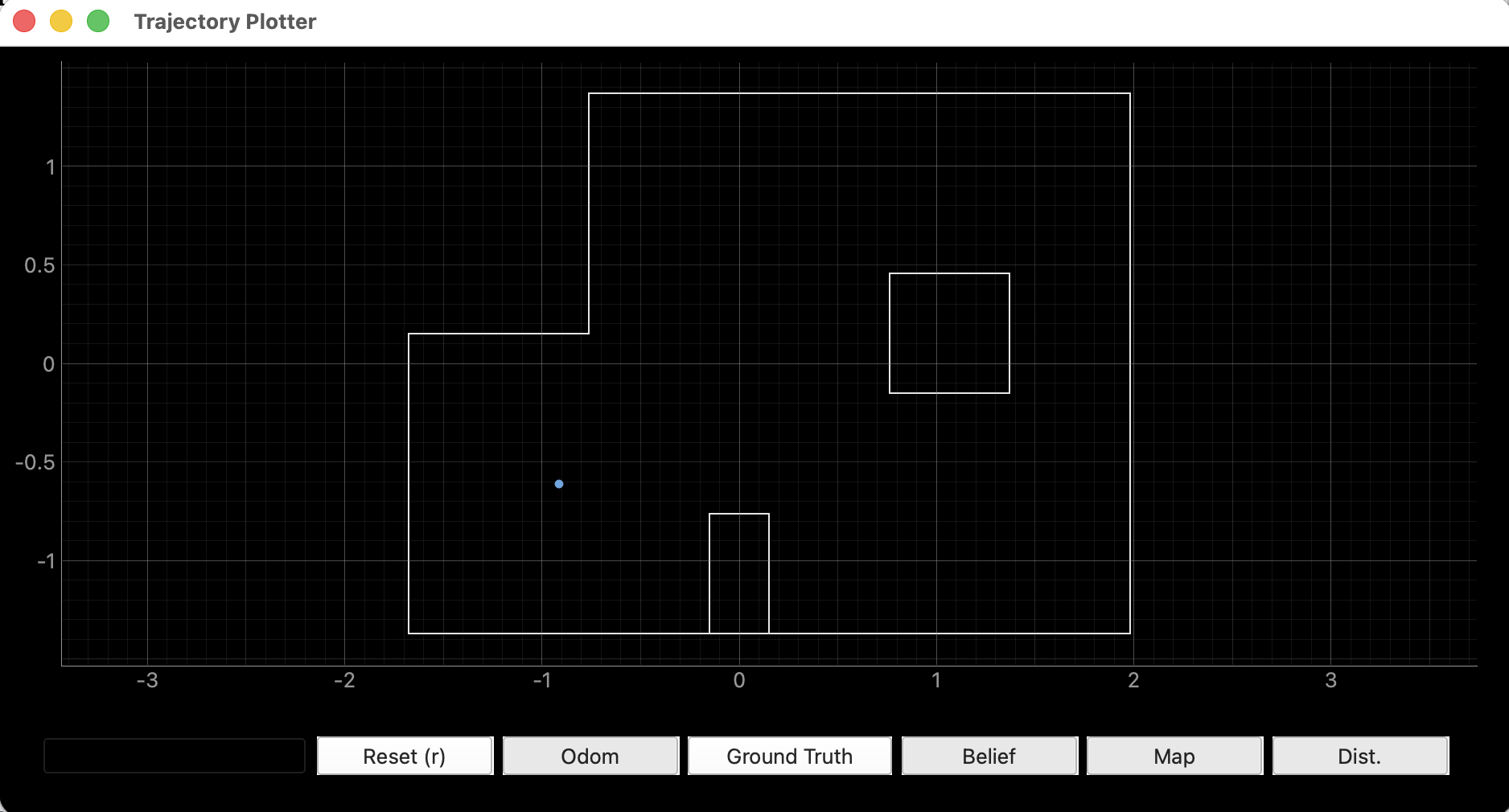

Figure 15 — Perfect localization at pose (-3, -2) after the ToF fix
Figure 15. After re-mounting the ToF sensor, the redo of pose (−3, −2) places the belief (blue) right at the GT location (−0.914, −0.610) m — the issue from Figure 10 was indeed caused by the sensor orientation.

Pose (5, −3)

Video 4. Robot performing the 360° localization scan at pose (5, −3).

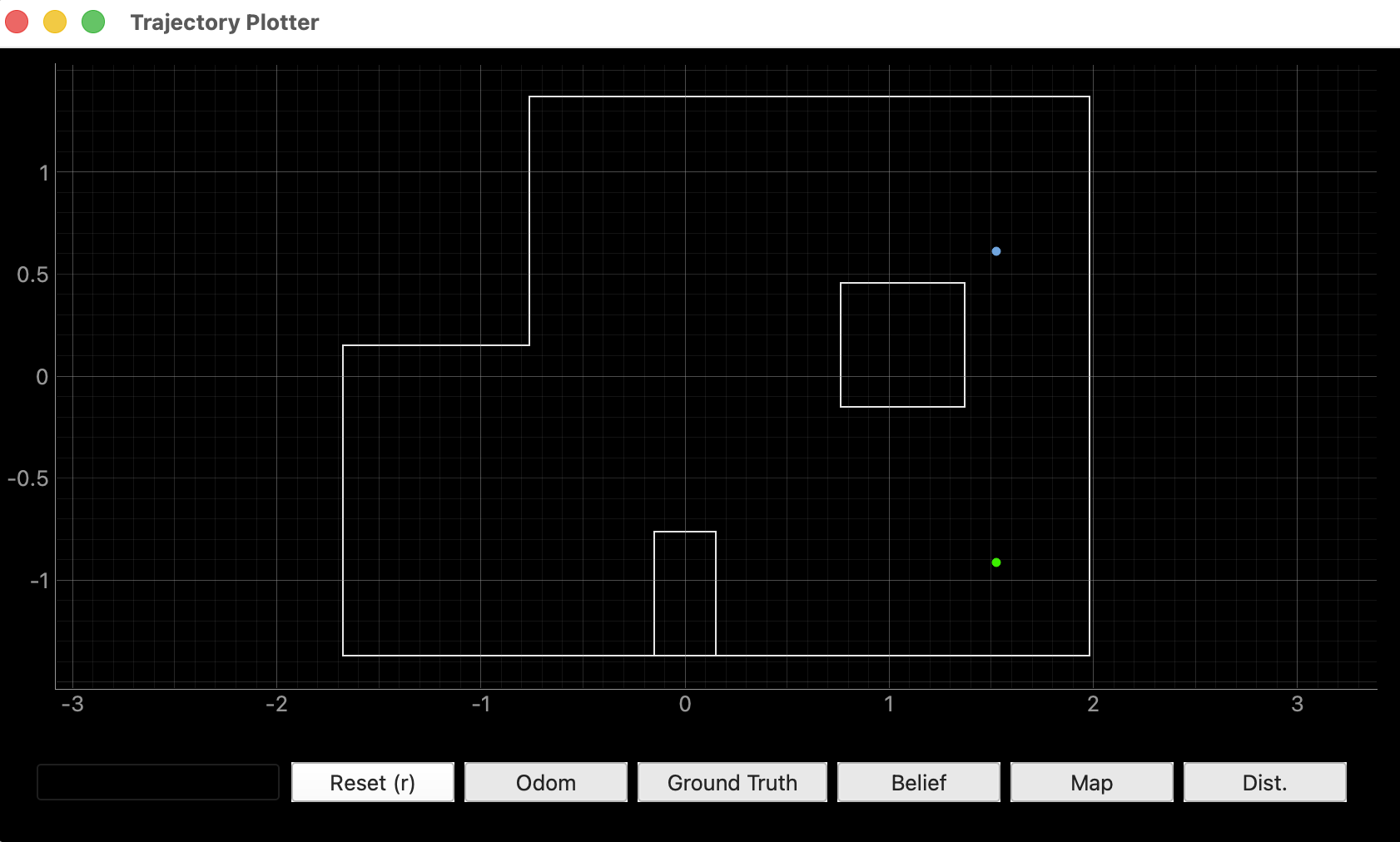

Figure 16 — Belief and GT at pose (5, -3)
Figure 16. At pose (5, −3), GT is at (1.524, −0.914) m (bottom-right corner), but the belief landed at approximately (1.5, 0.6) m — correct in x but wrong sign in y, an error of roughly 1.5 m.

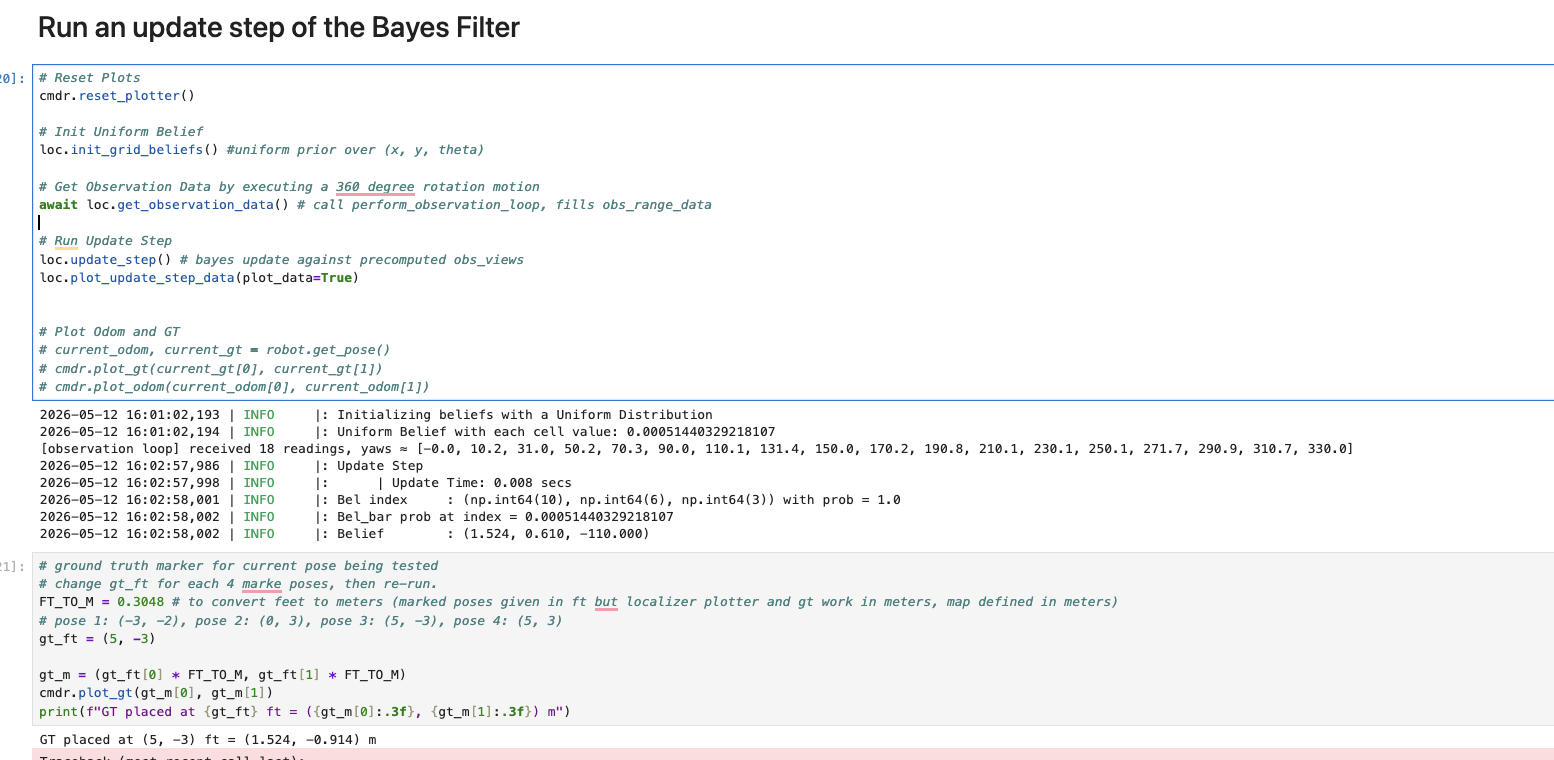

Figure 17 — Update step output at pose (5, -3)
Figure 17. Update step logs: belief at (1.524, 0.610, −110°) with probability 1.0. The y-coordinate is flipped relative to GT (−0.914 actual vs. 0.610 belief). The localizer found a geometrically plausible cell along the east wall, but on the wrong side of the room.

Pose (5, 3)

Video 5. Robot performing the 360° localization scan at pose (5, 3).

Figure 18 — Belief and GT at pose (5, 3)
Figure 18. At pose (5, 3), GT is at (1.524, 0.914) m (top-right corner) and the belief (blue) landed at approximately (1.5, 0.6) m — correct in x and only ~0.3 m off in y, one of the better results.

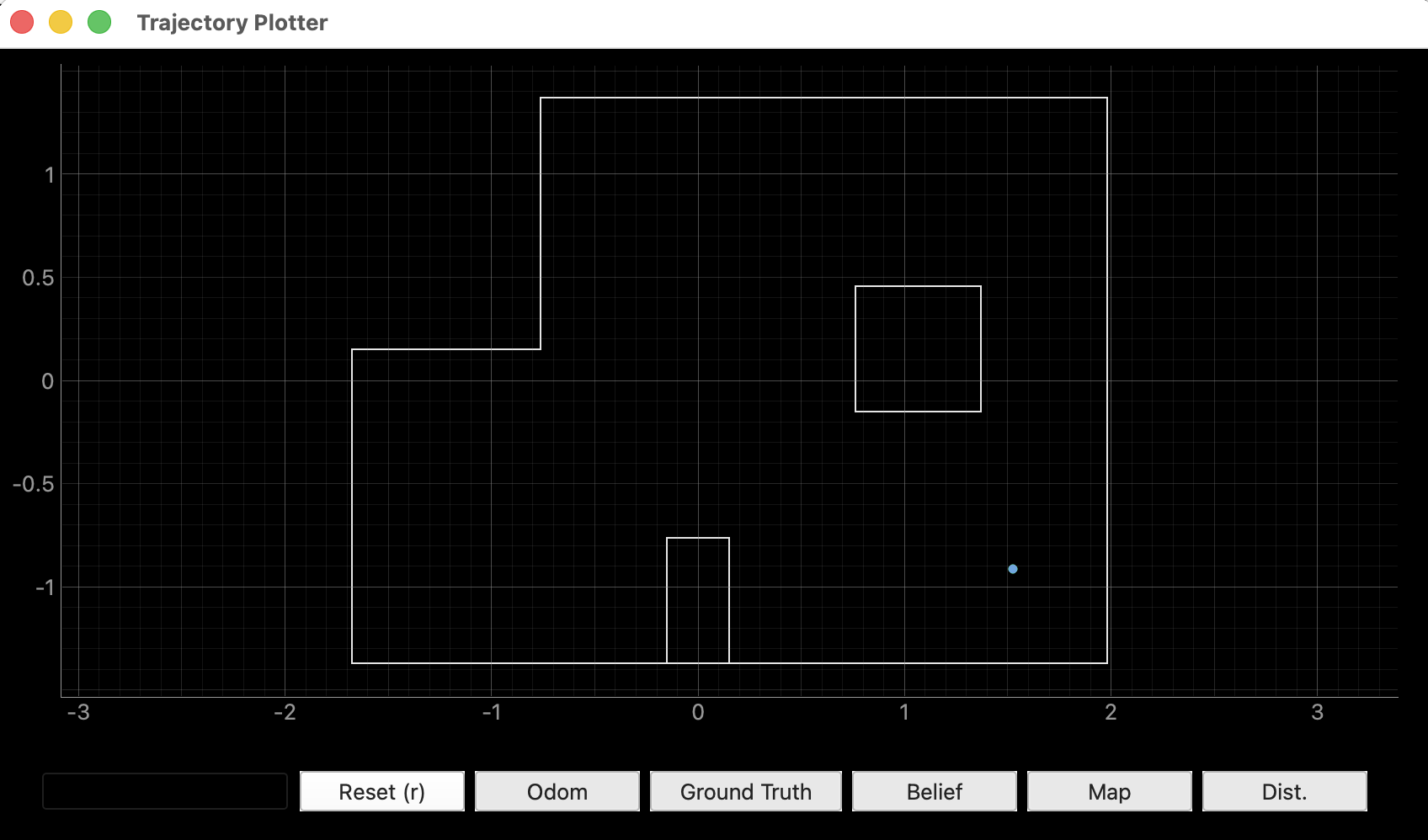

Figure 19 — Belief-only plot showing the localized position
Figure 19. Belief-only view from one of the scans (no GT marker placed yet). The single blue dot at approximately (1.5, −0.9) m shows where the localizer placed the robot's pose — useful for inspecting raw belief output before the GT overlay.

Discussion

Which poses localize well, and which don't?

After the ToF reorientation, pose (0, 3) and the redo of (−3, −2) both gave the best results — the beliefs landed within one grid cell of the GT (XY error 0−0.305 m). Pose (0, 3) is close to the north wall with a long open sightline to the south, giving an asymmetric range signature that the sensor model can match uniquely. Pose (−3, −2) sits near the bottom-left corner with two nearby walls, also distinctive.

Pose (5, −3) had the largest error — the belief landed at (1.524, 0.610), mirroring the GT across the x-axis. Pose (5, 3) was a middle case with about 0.3 m of y-error. These two poses sit in more geometrically symmetric parts of the map where multiple cells produce similar 18-ray range signatures, so the filter can snap to whichever cell scores marginally higher. With probability reported as 1.0 at every timestep due to floating-point underflow, it's hard to distinguish "highly confident" from "least-bad guess".

Why heading matters so much

The single most informative debugging insight came from the heading output of the update step. Even when the position estimate was wrong, the reported heading told me which direction the localizer thought the robot was facing — and comparing that to the direction I knew I had placed the robot (170° reported vs. 0° intended) revealed an offset between the sensor's mount orientation and the robot's apparent heading. Without the ToF re-orientation, every subsequent reading would have been ~180° off from how the obs_views table indexed them, and no amount of tuning would have produced correct localization.

Comparison to simulation

In simulation (Task 1), the Bayes filter tracked the ground truth almost perfectly across all 15 trajectory steps. On the real robot, only two of four poses gave sub-grid-cell errors. Several factors contribute to this gap:

  • Sensor noise. The real VL53L1X has range bias, dropped readings, and gets noisier at longer distances — while the simulator's ToF model is much cleaner.
  • Gyro drift. Over a 360° rotation, the integrated yaw drifts a few degrees, shifting which actual heading each "20° setpoint" reading corresponds to.
  • Map mismatch. The physical map walls aren't perfectly aligned with the world.yaml geometry — tiles aren't exactly 1 ft, walls have gaps, and obstacles have rounded edges.
  • Grid resolution. The 0.3048 m positional resolution and 20° angular resolution put a hard floor on how precisely the belief can be placed regardless of sensor quality.
Even with these limitations, the Bayes filter is doing real work: it consistently places the belief inside the map, and at favorable poses comes within one grid cell of the true position from a completely uniform starting prior. That's a much better outcome than relying on raw odometry, which on the real robot would drift outside the map almost immediately.
