Lab 10: Localization using Bayes Filter (Simulation)

Pre-lab Setup

I followed the simulator setup instructions, activating my virtual environment and installing all required dependencies:

python -m pip install numpy pygame pyqt6 pyqtgraph pyyaml ipywidgets colorama

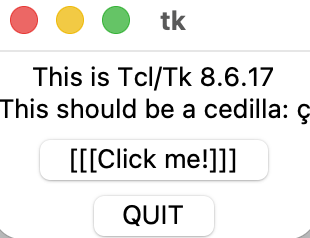

Running python -m tkinter in the terminal produces a GUI pop-up. Clicking the "Click me" button appends an additional bracket layer — confirming that tkinter is configured correctly.

I then installed Box2D via pip (pip install Box2D) and verified the installation by running import Box2D; print(Box2D.__version__) in the Python interpreter, which outputs 2.3.10.

After downloading and extracting the simulation base code, the virtual robot and plotter are accessible via inClassDemo.ipynb.

Task 1 — Open Loop Control

The goal of Task 1 is to command the robot through a square loop using only pre-set velocity commands, with no sensor feedback.

In-Class Attempt

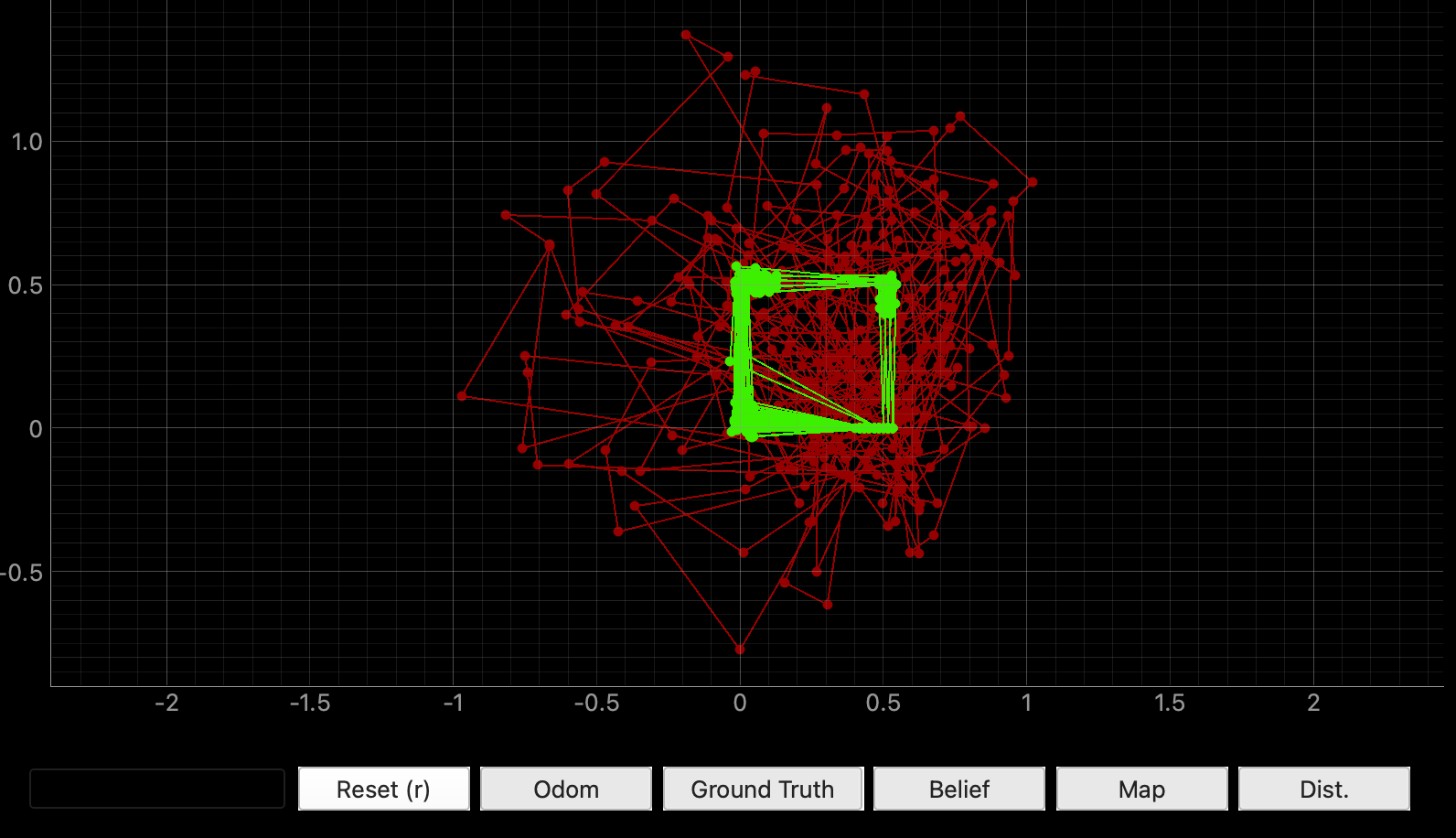

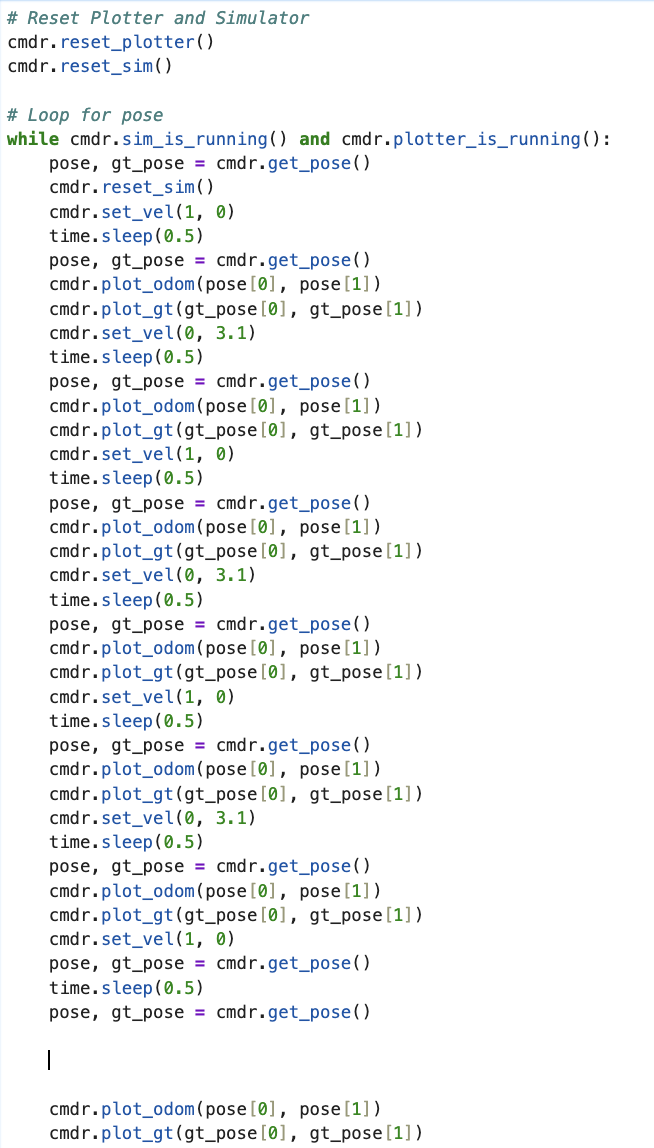

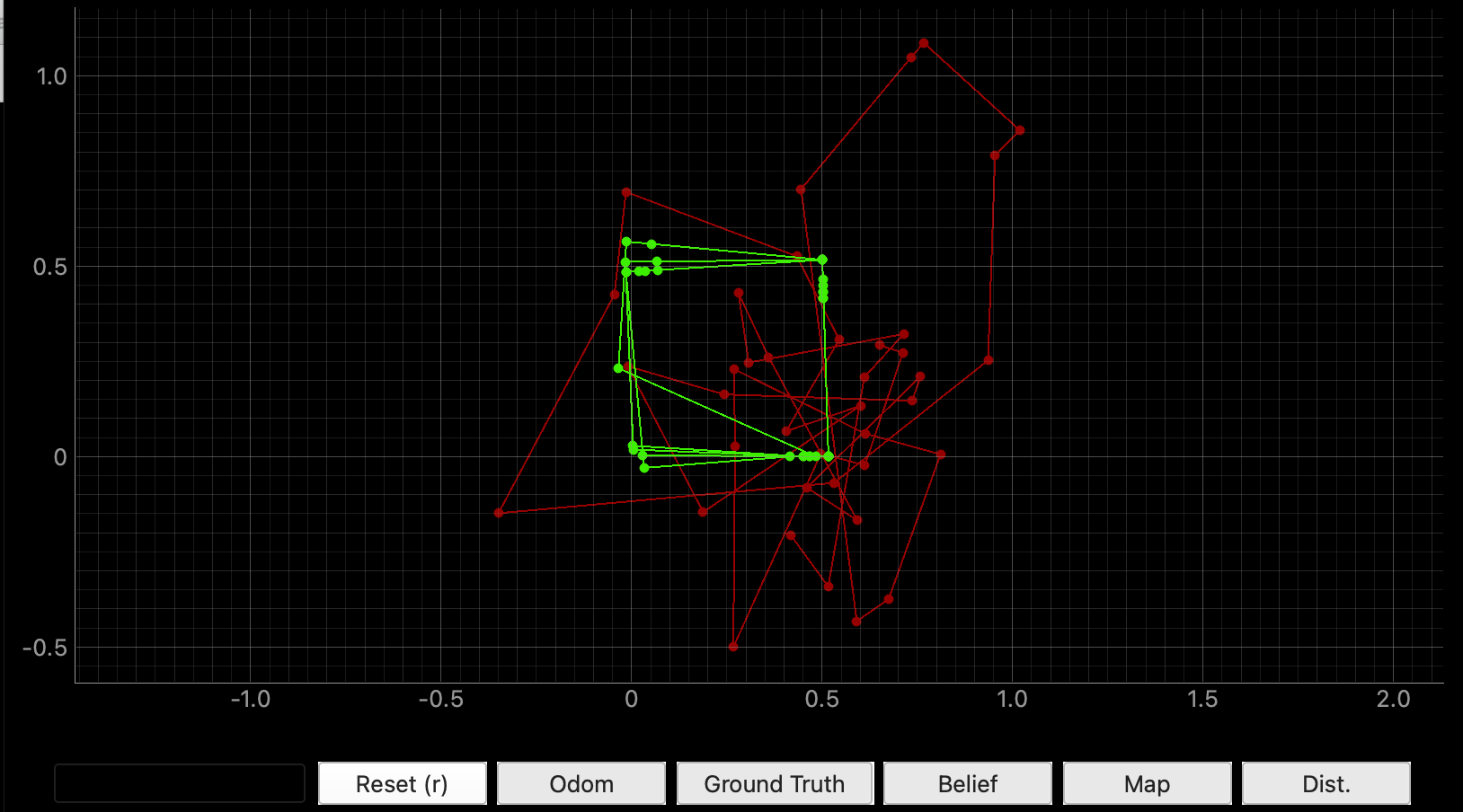

My initial attempt had a cmdr.reset_sim() inside the while loop, causing the robot to teleport back to the origin every iteration instead of completing the square. The code also used time.sleep() (which blocks the async event loop) and an angular velocity of 3.1 rad/s rather than math.pi, producing an 88.8° turn instead of the intended 90°.

Revised Attempt

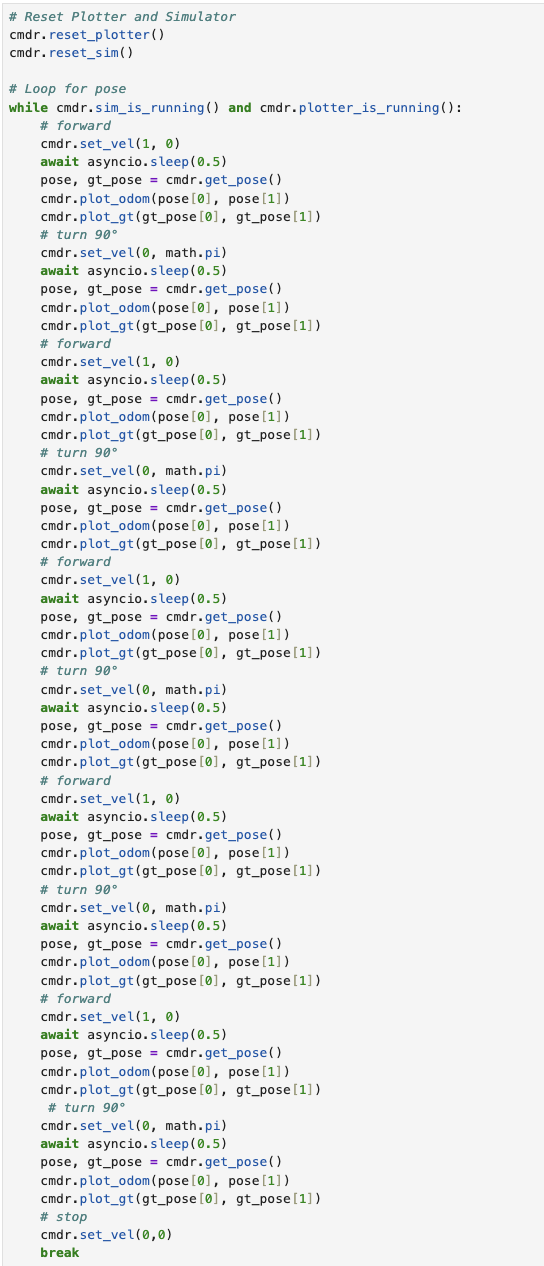

Three fixes were applied after class:

• Removed cmdr.reset_sim() from inside the loop.
• Replaced time.sleep() with await asyncio.sleep() to avoid blocking the async event loop.
• Changed angular velocity to math.pi for an exact 90° turn (π × 0.5 s = 1.5708 rad).

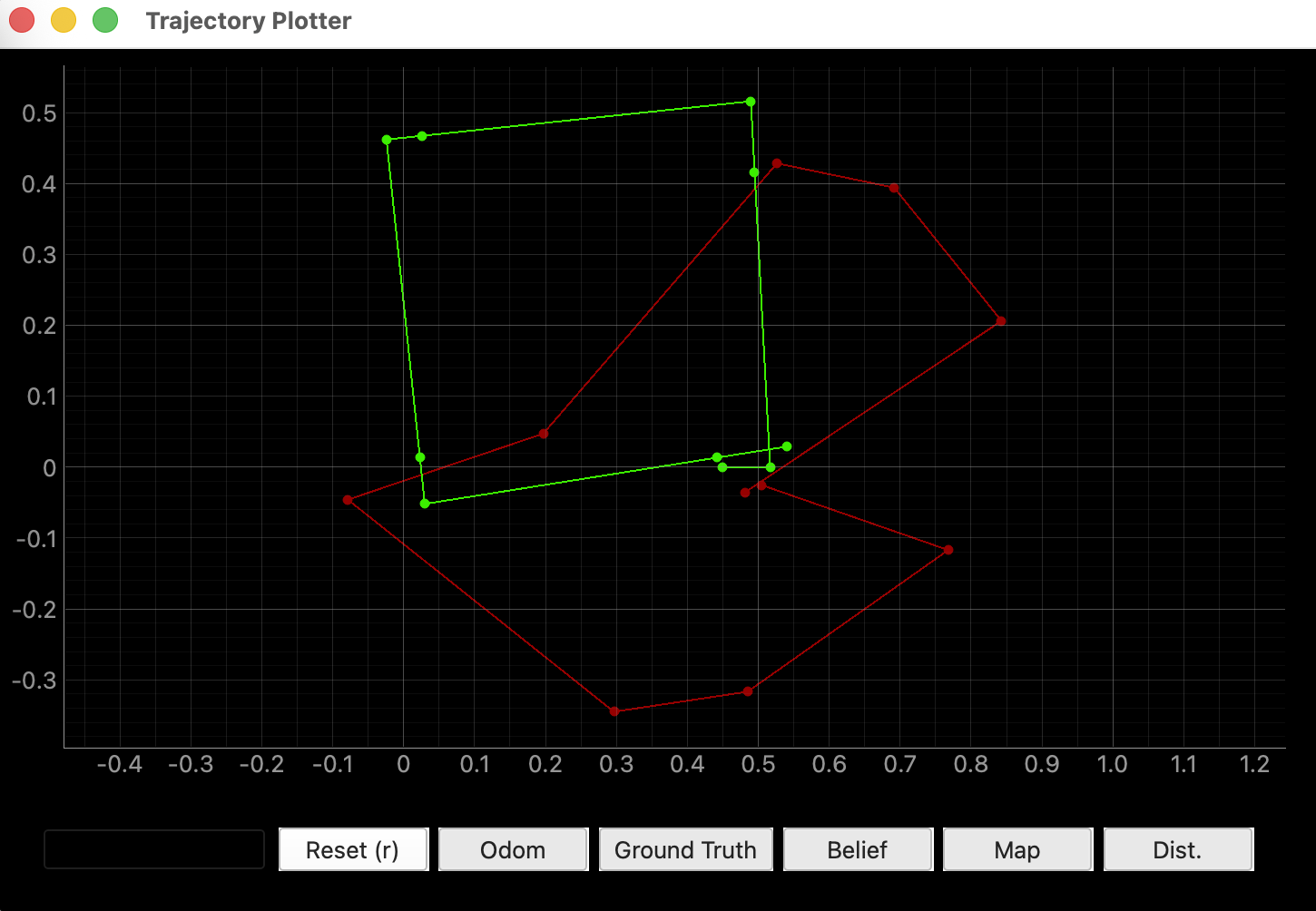

A break was also added to stop after one square so the odometry cloud stays clean.

What is the duration of a velocity command?

Each velocity command lasts 0.5 seconds, controlled by await asyncio.sleep(0.5). set_vel() sets the velocity immediately and returns; the sleep duration determines how long the robot actually moves at that velocity before the next command is issued.

Does the robot always execute the exact same shape?

No. I re-ran the simulator twice and observed different results both times:

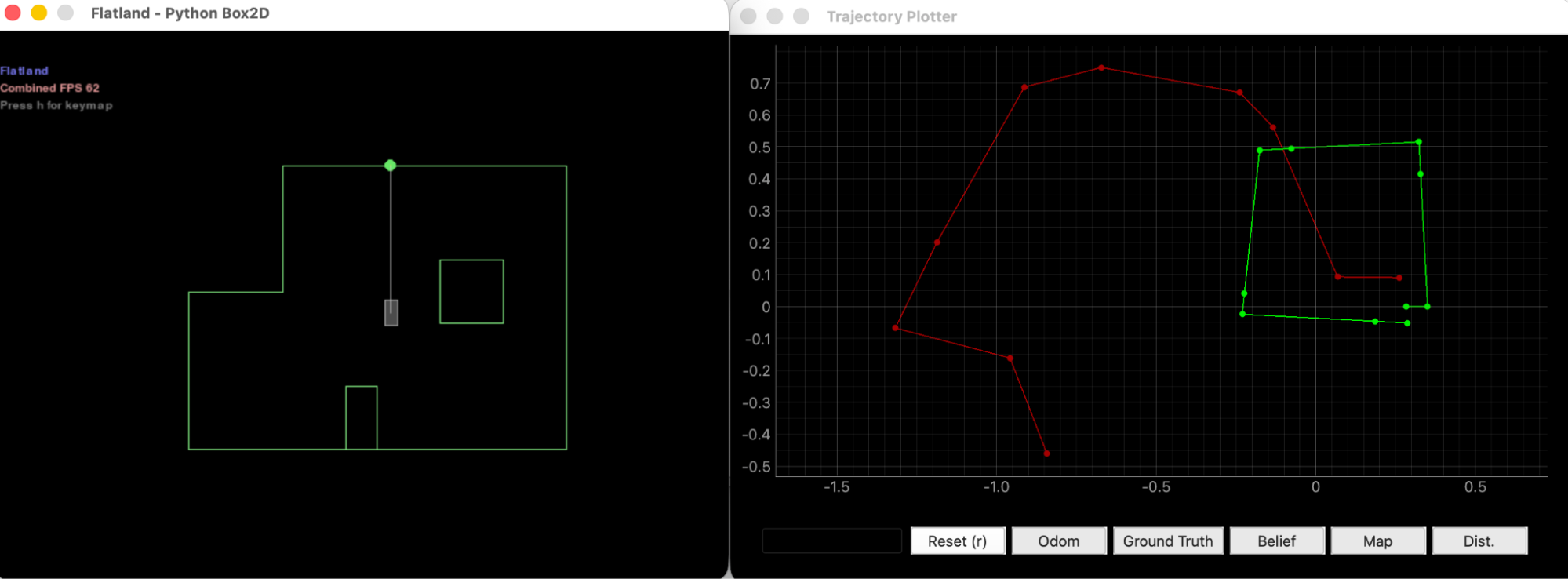

• Run 1: Green square starts near (−0.3, 0); robot ends pointing roughly upward.

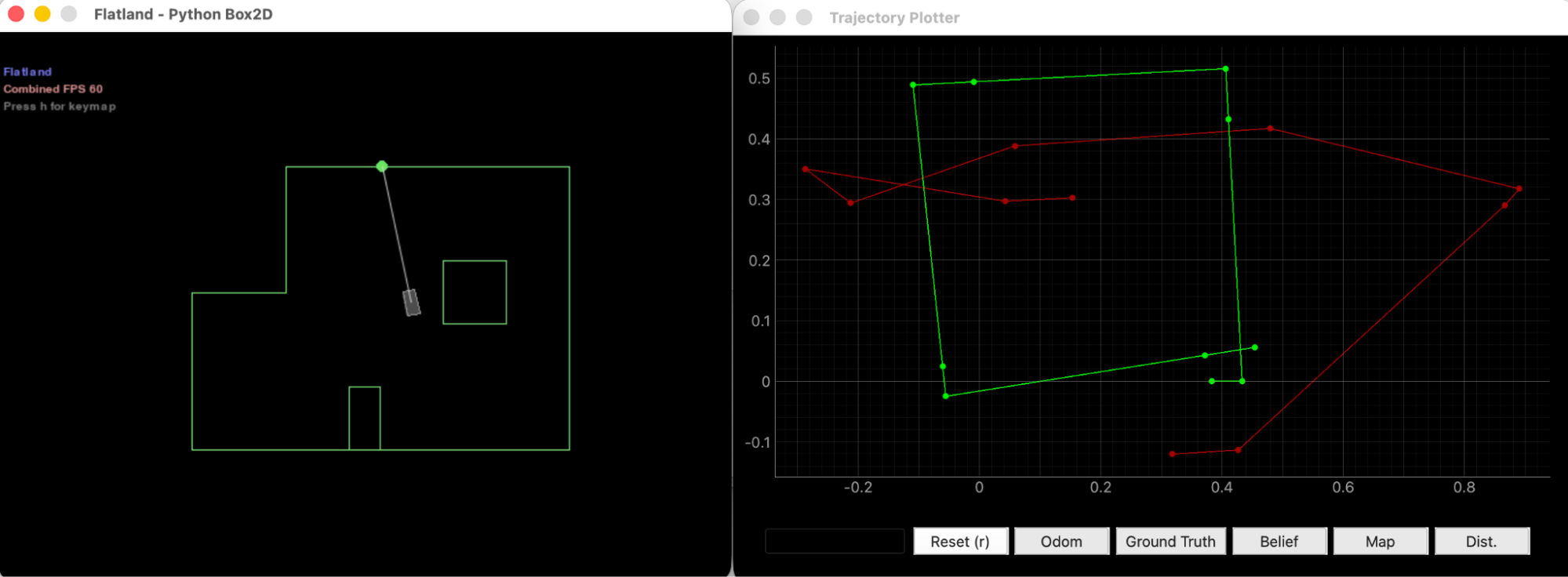

• Run 2: Green square starts near (−0.2, 0); sensor line is visibly more slanted at the end.

The odometry (red) varies dramatically due to accumulated sensor noise, producing a different distorted polygon every time. But even the ground truth (green) is not perfectly reproducible — reset_sim() introduces small pose variations on each reset. Since open-loop control issues the same velocity commands regardless of actual state, any initial or mid-trajectory deviation propagates forward uncorrected.

Task 2 — Closed Loop Control

The goal of Task 2 is to implement a simple closed-loop obstacle avoidance controller using the front-facing ToF sensor.

In-Class Attempt

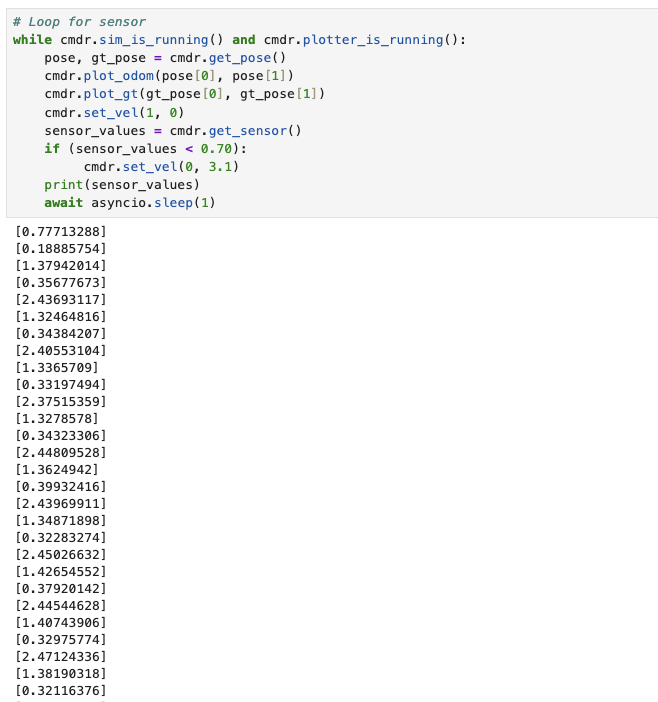

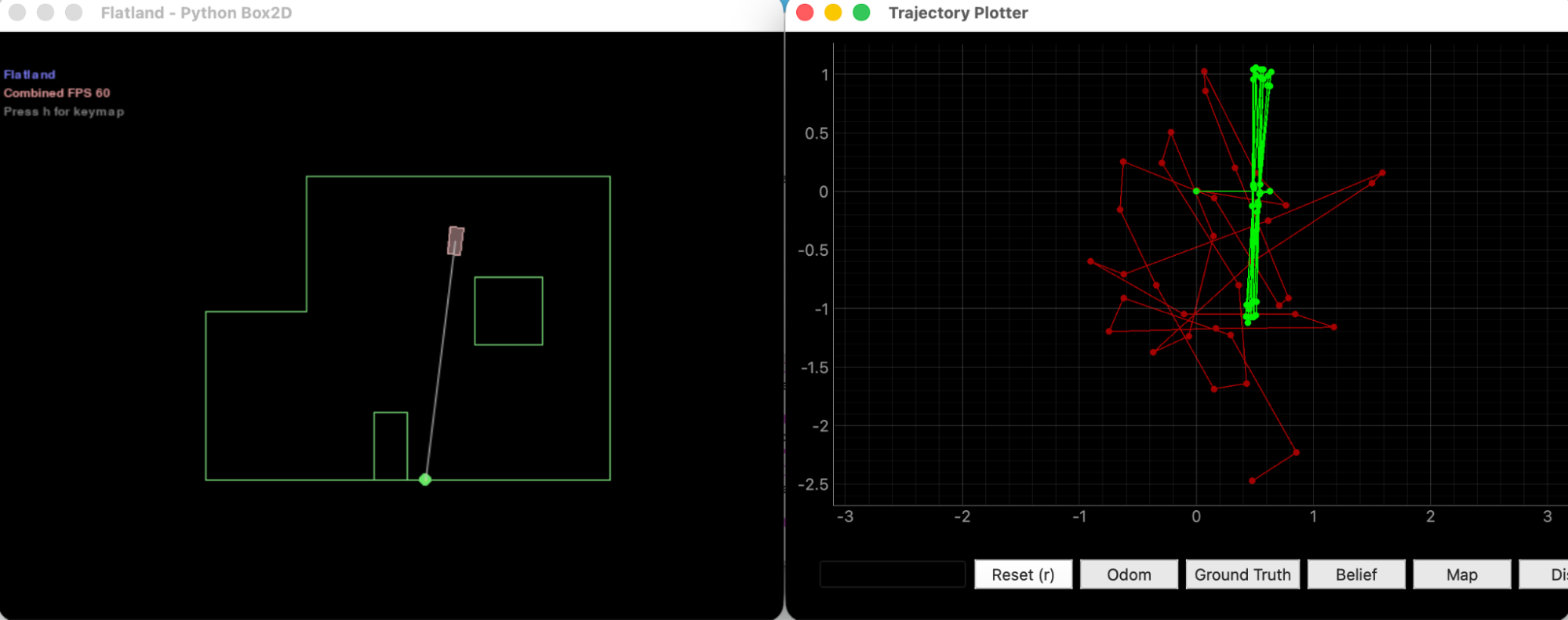

The in-class version commanded a fixed 180° turn every time the sensor read below 0.70 m, always in the same direction. This caused the robot to get trapped bouncing back and forth in a straight line.

Revised Attempt

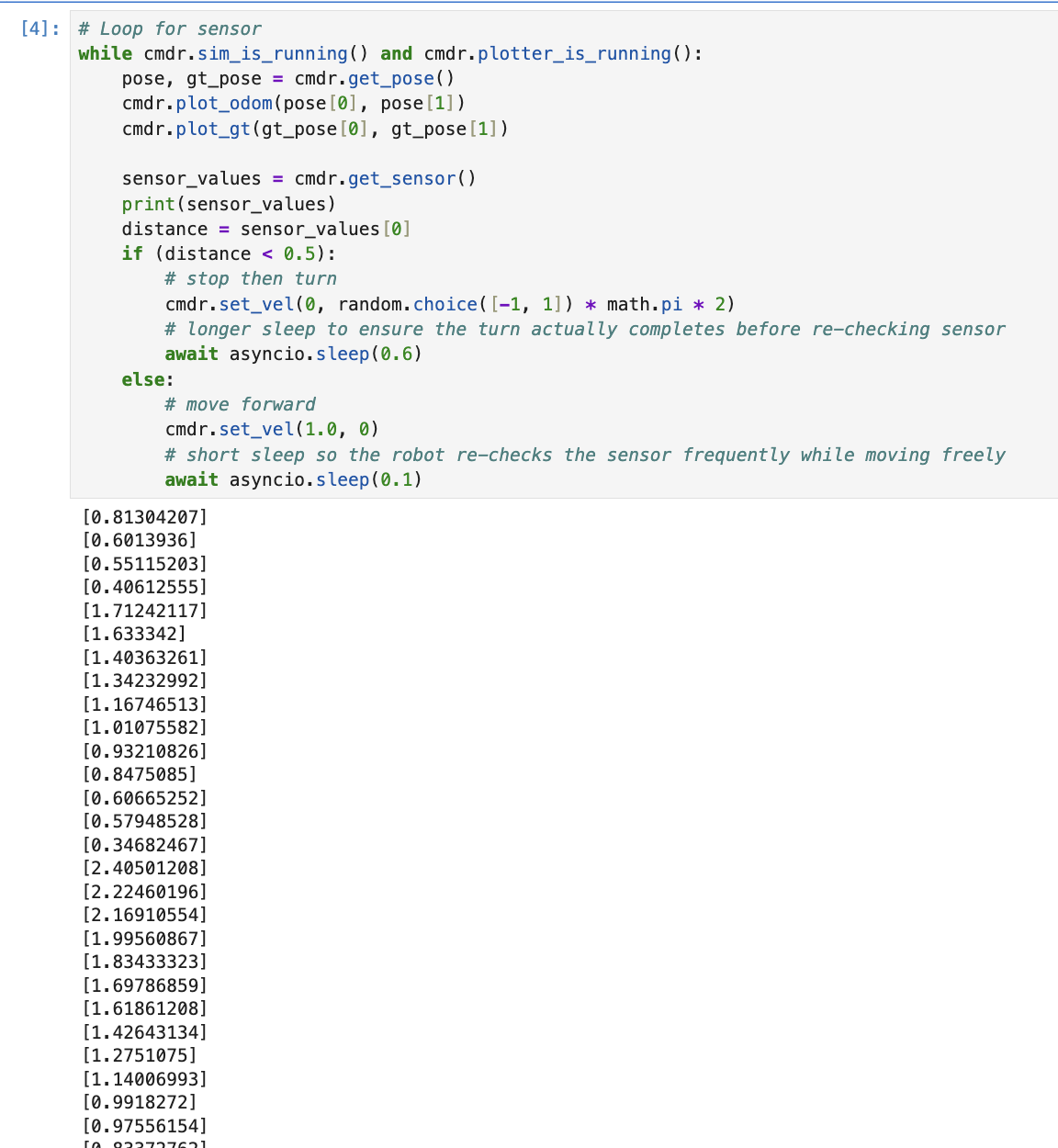

I imported the random library and added a random turn direction to prevent the robot getting trapped in corners. The robot reads the sensor and reacts: the sensor value feeds back into the turn decision, making this a closed-loop controller with respect to obstacle avoidance (though not with respect to pose estimation).

# Loop for sensor
while cmdr.sim_is_running() and cmdr.plotter_is_running():
    pose, gt_pose = cmdr.get_pose()
    cmdr.plot_odom(pose[0], pose[1])
    cmdr.plot_gt(gt_pose[0], gt_pose[1])

    sensor_values = cmdr.get_sensor()
    print(sensor_values)
    distance = sensor_values[0]
    if (distance < 0.5):
        # stop then turn
        cmdr.set_vel(0, random.choice([-1, 1]) * math.pi * 2)
        # longer sleep to ensure turn completes before re-checking sensor
        await asyncio.sleep(0.6)
    else:
        # move forward
        cmdr.set_vel(1.0, 0)
        # short sleep so robot re-checks sensor frequently while moving
        await asyncio.sleep(0.1)

By how much should the virtual robot turn when close to an obstacle?

When the sensor reads below 0.5 m, the robot turns at 2π rad/s for 0.6 seconds, rotating roughly 360° × 0.6 ≈ 216°. The random.choice([-1, 1]) prevents the robot from repeatedly spinning into the same corner.

At what linear speed should the virtual robot move? Can it go faster?

The robot moves at 1.0 m/s in the clear-path branch. The else branch re-checks the sensor every 0.1 s, so the robot travels only ~0.1 m per loop iteration before re-evaluating — giving ample reaction time. Speed could be increased by reducing the sleep duration further, so the robot re-evaluates more frequently.

How close can the virtual robot get to an obstacle without colliding?

The trigger threshold is 0.5 m. During the 0.1 s of free travel at 1.0 m/s, the robot travels an additional ~0.1 m, so real proximity at the moment of response is approximately 0.4 m.

Does the obstacle avoidance code always work?

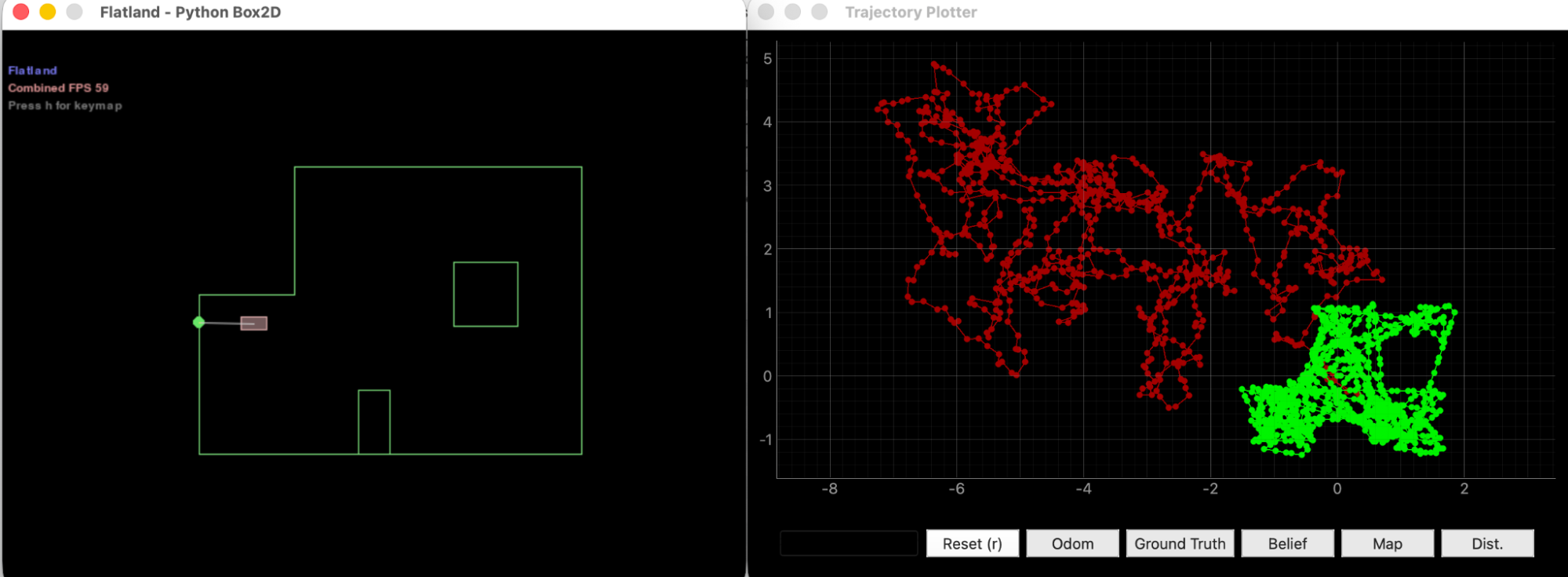

Not always. If the robot is mid-turn and the sensor briefly reads a clear path, the controller snaps back to 1.0 m/s before the turn is complete. At concave corners, the robot may also turn toward a wall that was previously behind it. Increasing the threshold from 0.5 m to ~0.7 m would give more buffer in tight spaces.

Bayes Filter Implementation

In the pre-lab, the closed-loop controller corrected the robot's heading based on real-time sensor input, but did not use that information to fix the pose estimate. In this section, I implement grid localization using a Bayes filter to mitigate odometry drift and produce a belief (blue) that closely tracks the ground truth (green).

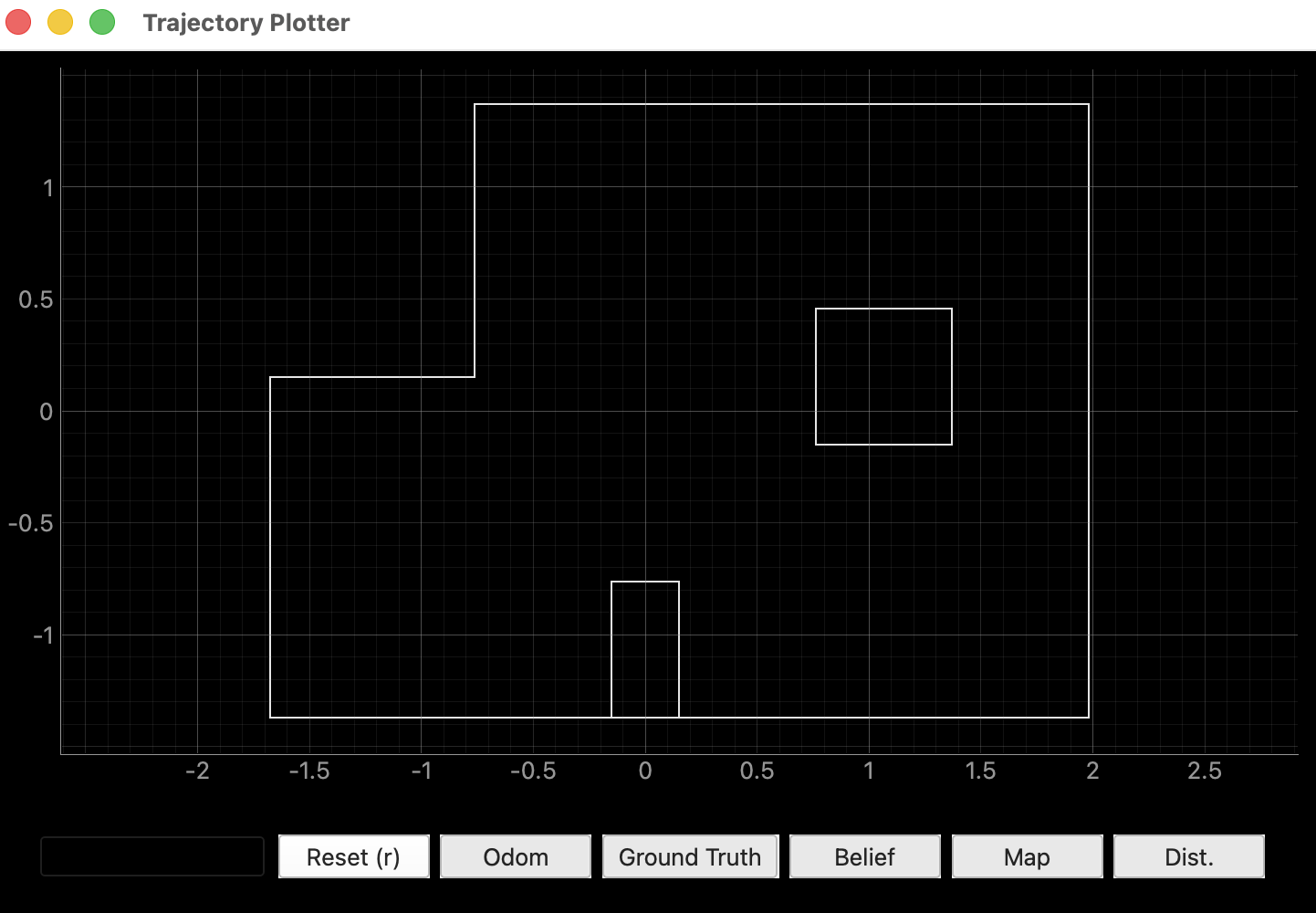

After starting the simulator and plotter, I initialized the robot, mapper, and BaseLocalization object, then called cmdr.plot_map() to render the world geometry from world.yaml.

compute_control

Extracts the odometry motion model parameters [δ_rot1, δ_trans, δ_rot2] from two consecutive poses. Any motion between two states can be decomposed into: an initial rotation to face the destination, a straight-line translation, and a final rotation to the new heading.

def compute_control(cur_pose, prev_pose):
    # angle of the straight line connecting prev to cur, relative to prev heading
    delta_rot_1 = mapper.normalize_angle(
        np.degrees(np.arctan2(
            cur_pose[1] - prev_pose[1], cur_pose[0] - prev_pose[0])
        ) - prev_pose[2]
    )
    # Euclidean distance between the two positions
    delta_trans = np.hypot(
        cur_pose[0] - prev_pose[0], cur_pose[1] - prev_pose[1]
    )
    # remaining rotation after the translation
    delta_rot_2 = mapper.normalize_angle(
        cur_pose[2] - prev_pose[2] - delta_rot_1
    )
    return delta_rot_1, delta_trans, delta_rot_2

odom_motion_model

Answers: given that the robot actually performed motion u (extracted from odometry), how probable is the transition from prev_pose to cur_pose? It computes the "ideal" control needed to make that transition, then scores how close the actual control is using three Gaussians — one per motion parameter.

def odom_motion_model(cur_pose, prev_pose, u):
    rot1, trans, rot2 = u  # actual control from odometry in prediction_step

    # ideal control needed to go from prev_pose to cur_pose
    hat_rot1, hat_trans, hat_rot2 = compute_control(cur_pose, prev_pose)

    p1 = loc.gaussian(mapper.normalize_angle(rot1 - hat_rot1), 0, loc.odom_rot_sigma)
    p2 = loc.gaussian(trans - hat_trans, 0, loc.odom_trans_sigma)
    p3 = loc.gaussian(mapper.normalize_angle(rot2 - hat_rot2), 0, loc.odom_rot_sigma)

    return p1 * p2 * p3

prediction_step

Computes the prior belief bel_bar(xt) = Σ p(xt | u, xt−1) · bel(xt−1) by iterating over all pairs of current and previous grid cells. Cells with probability below 0.0001 are skipped for efficiency. The result is normalized since skipping cells means probabilities no longer sum to 1.

def prediction_step(cur_odom, prev_odom):
    u = compute_control(cur_odom, prev_odom)
    loc.bel_bar = np.zeros(loc.bel_bar.shape)

    for cx in range(mapper.MAX_CELLS_X):
        for cy in range(mapper.MAX_CELLS_Y):
            for ca in range(mapper.MAX_CELLS_A):
                for px in range(mapper.MAX_CELLS_X):
                    for py in range(mapper.MAX_CELLS_Y):
                        for pa in range(mapper.MAX_CELLS_A):
                            if loc.bel[px, py, pa] < 0.0001:
                                continue
                            prev_pose = mapper.from_map(px, py, pa)
                            cur_pose  = mapper.from_map(cx, cy, ca)
                            # transition probability p(x_t | u, x_{t-1})
                            prob = odom_motion_model(cur_pose, prev_pose, u)
                            loc.bel_bar[cx, cy, ca] += prob * loc.bel[px, py, pa]

    loc.bel_bar /= np.sum(loc.bel_bar)

sensor_model

For a candidate grid cell, mapper.obs_views[cx, cy, ca, :] holds the 18 precomputed true distances the robot would see if it were actually at that cell. The sensor model scores how well the robot's actual readings match those precomputed values using a Gaussian, returning 18 individual likelihoods.

def sensor_model(obs):
    # obs: 18 true values for a grid cell (from precomputed raytrace table)
    # obs_range_data: 18 actual sensor readings from the robot
    return loc.gaussian(loc.obs_range_data[:, 0], obs, loc.sensor_sigma)

update_step

Computes the posterior belief bel(xt) = η · p(zt|xt) · bel_bar(xt). For each cell, the product of all 18 sensor likelihoods is multiplied by the prior. Cells where sensor readings match the precomputed values are boosted; mismatches are suppressed. The result is normalized.

def update_step():
    for cx in range(mapper.MAX_CELLS_X):
        for cy in range(mapper.MAX_CELLS_Y):
            for ca in range(mapper.MAX_CELLS_A):
                true_obs   = mapper.obs_views[cx, cy, ca, :]
                likelihoods = sensor_model(true_obs)
                # p(z|x) = product of 18 individual measurement likelihoods
                loc.bel[cx, cy, ca] = np.prod(likelihoods) * loc.bel_bar[cx, cy, ca]

    loc.bel /= np.sum(loc.bel)

Collision-Free Trajectory

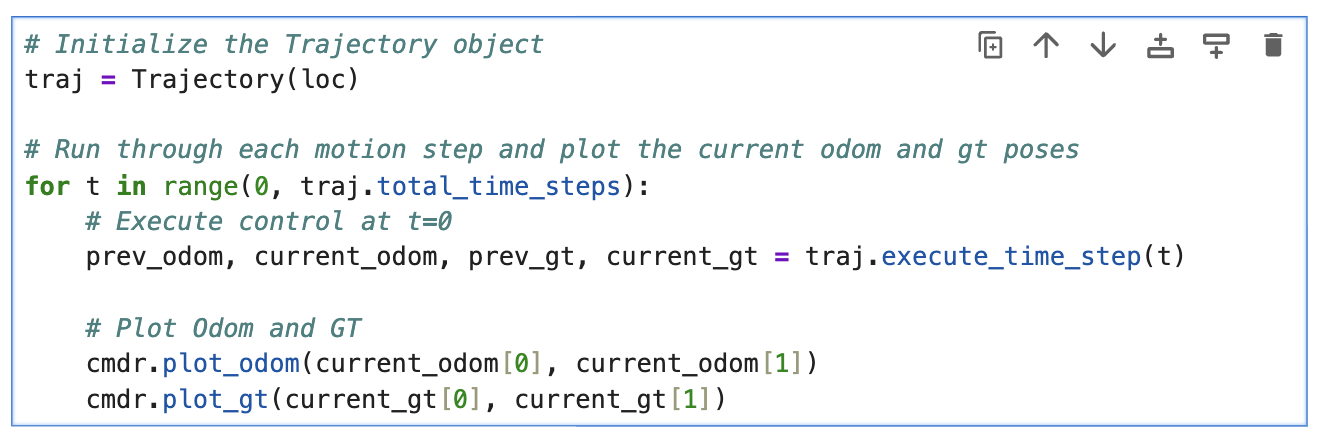

I initialized the Trajectory object and ran through all time steps, plotting odometry and ground truth at each step. Executing steps sequentially from t = 0 to t = total_time_steps − 1 allows the robot to complete the entire pre-planned collision-free path.

# Initialize the Trajectory object
traj = Trajectory(loc)

# Run through each motion step and plot the current odom and gt poses
for t in range(0, traj.total_time_steps):
    prev_odom, current_odom, prev_gt, current_gt = traj.execute_time_step(t)
    cmdr.plot_odom(current_odom[0], current_odom[1])
    cmdr.plot_gt(current_gt[0], current_gt[1])

Observation Data

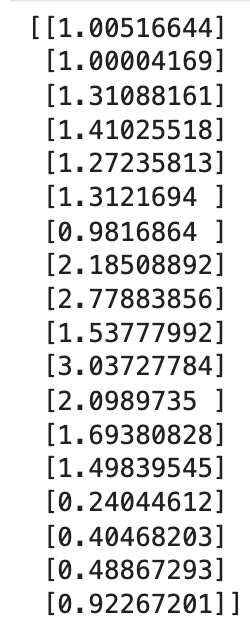

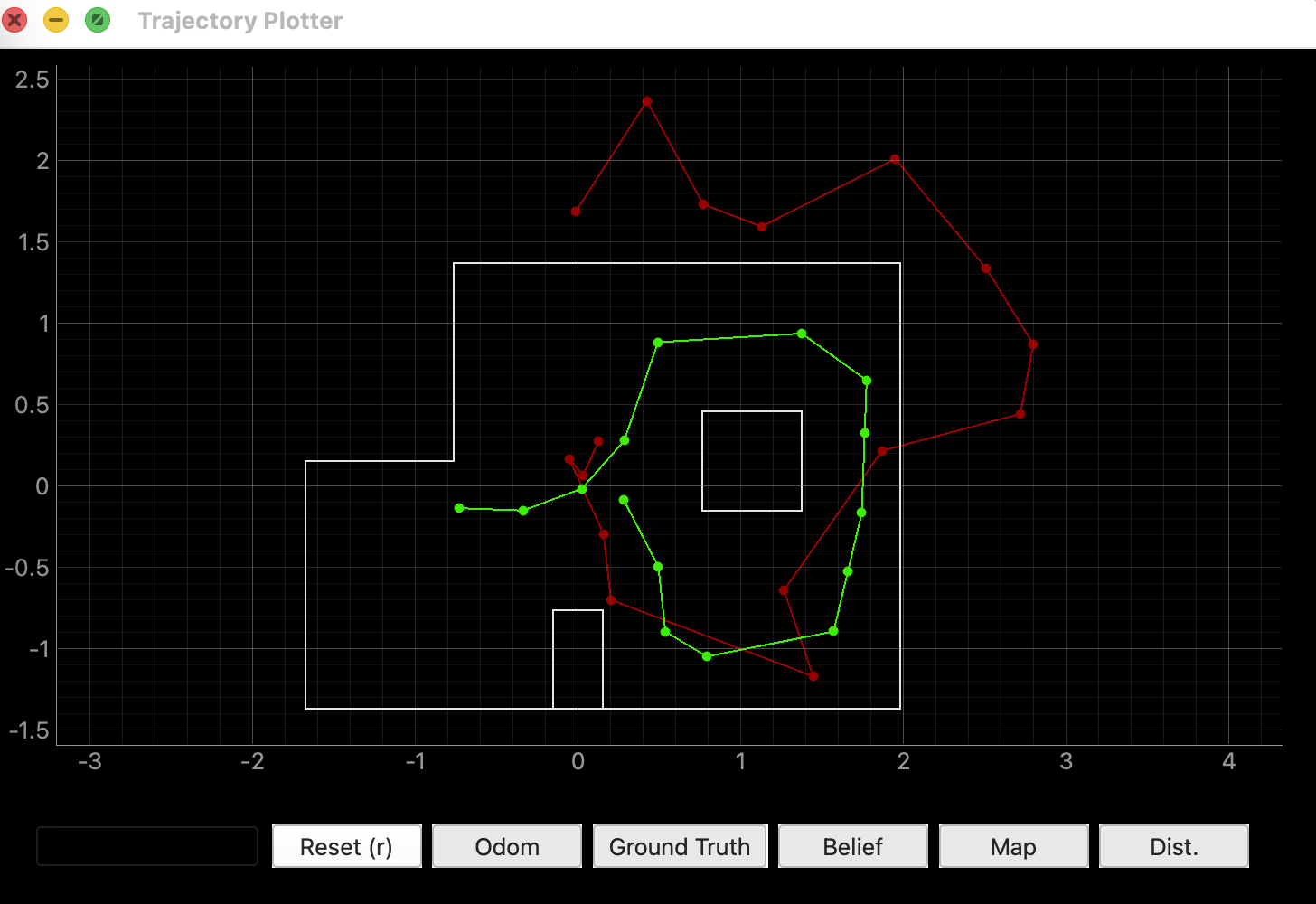

Observation data z_t is collected by running loc.get_observation_data(), which executes a 360° rotation in place to collect 18 range measurements at equidistant angular intervals. The first reading is taken at the robot's current heading. Readings are stored in loc.obs_range_data.

Localization Results

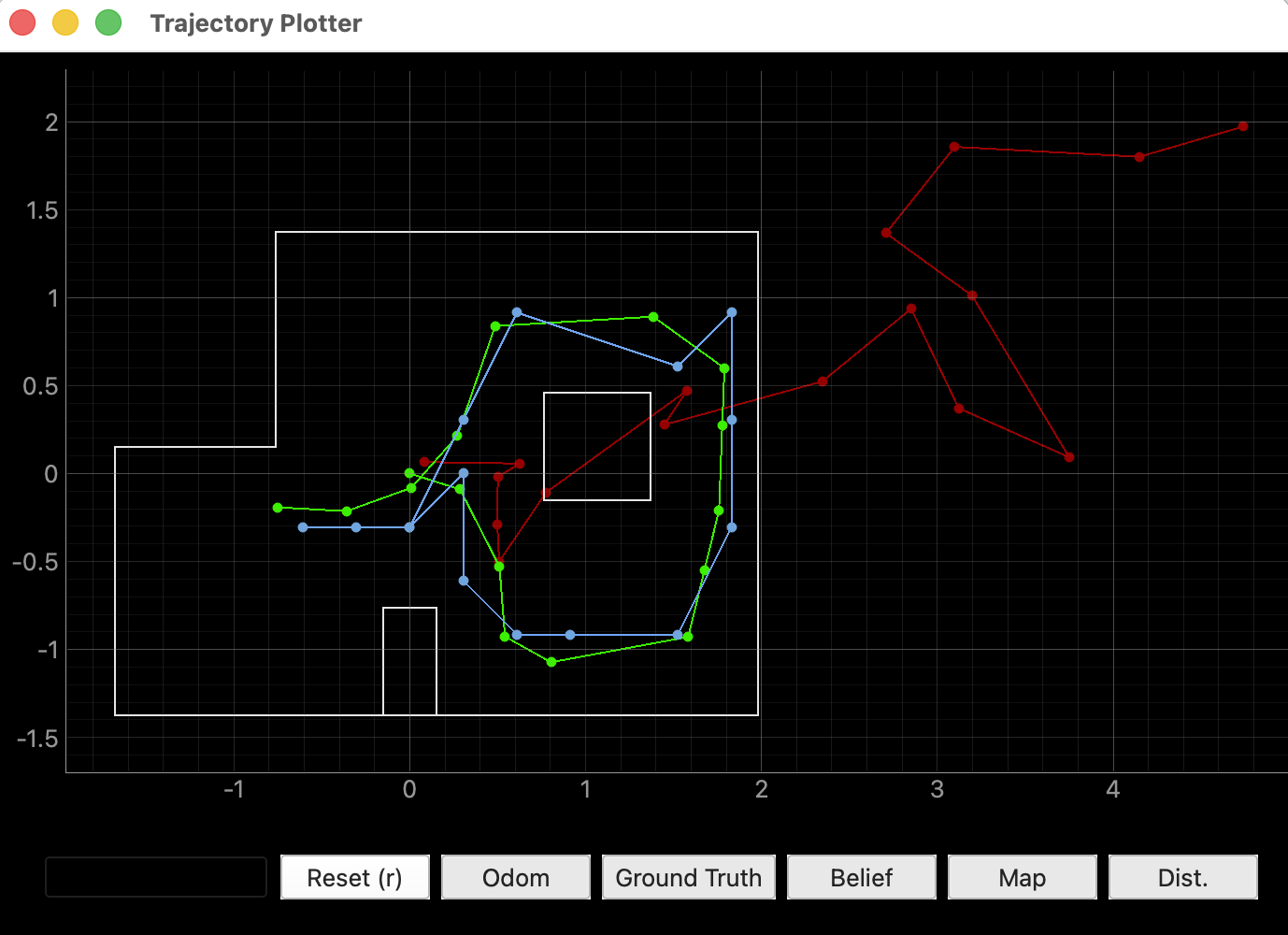

The full localization loop runs the Bayes filter at each trajectory time step: execute motion → prediction step → collect observations → update step. An initial update step is performed before the first motion to seed the belief from a uniform distribution.

Video 5. Best localization run. The blue belief plot closely follows the green ground truth across the entire trajectory.

Most Probable State Per Iteration

Inference
